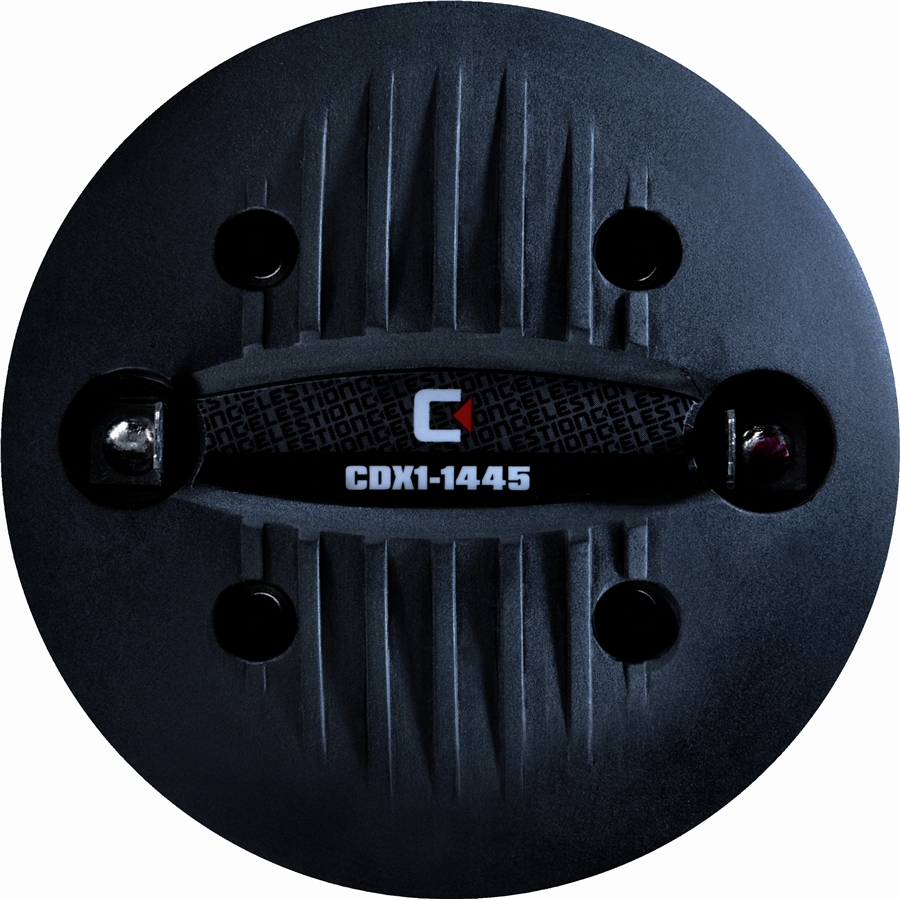

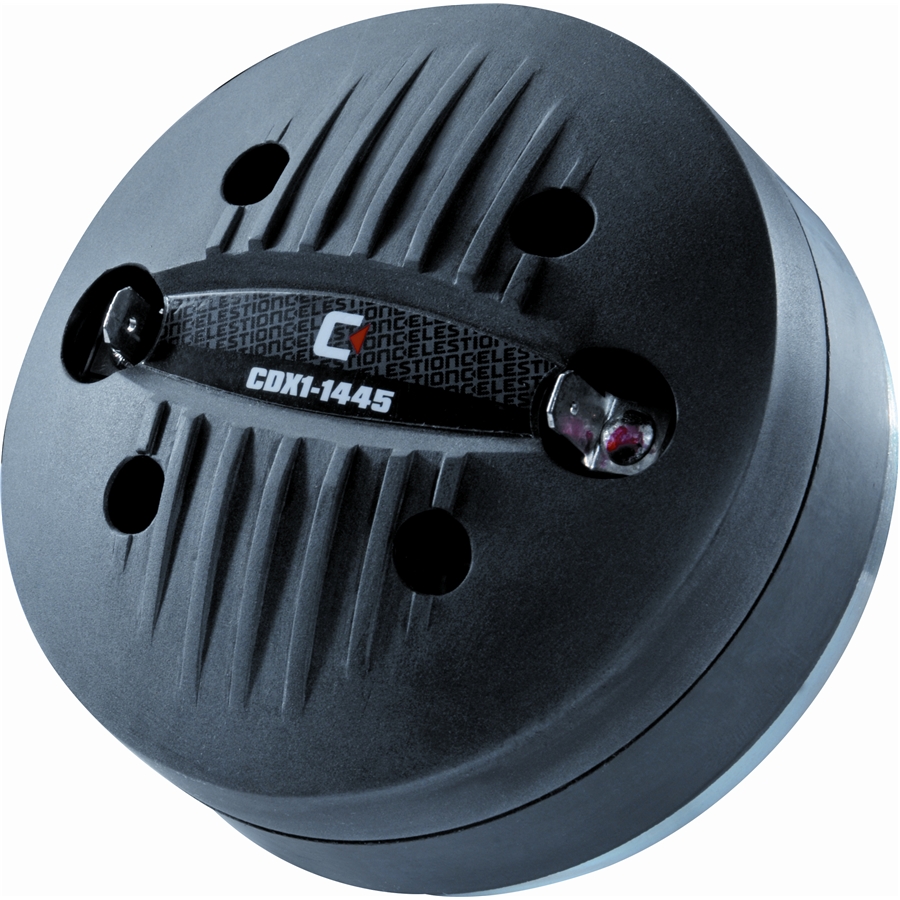

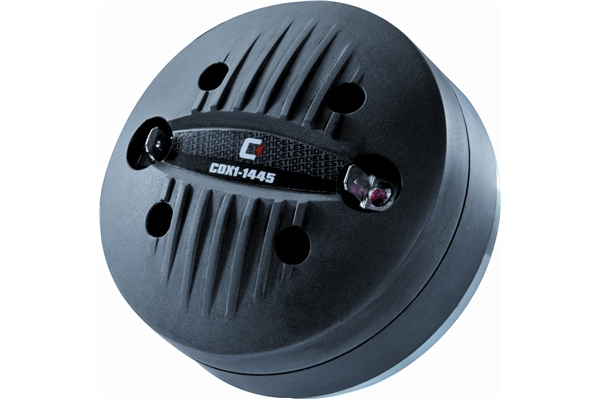

Celestion - CDX1-1445 20W 8ohm HF Ferrite

Celestion - CDX1-1445 20W 8ohm - HF Compression Driver - Ferrite
Driver a compressione con magnete in ferrite, uscita da 1", potenza 20Watt, impedenza 8ohm, diaframma in PETP (polietilene tereftalato), fissaggio con viti (bolt).

Voglia di audio Fai da Te? Per il progetto di un diffusore PA 10" compatto 2-vie, clicca qui
Design curato, collaudato e messo a disposizione direttamente da Celestion

Caratteristiche
- 1" exit lightweight and compact ferrite magnet compression driver with
- 1.4" copper clad aluminium voice coil
- 20Wrms power handling (AES standard) and 106dB sensitivity
- One piece PETP diaphragm and surround
- Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
- Suitable for 2-way and 3-way systems

Specifiche Generali
Power rating(1): 20Wrms
Continuous power rating(2): 40W
Nominal impedance: 8/16ohm

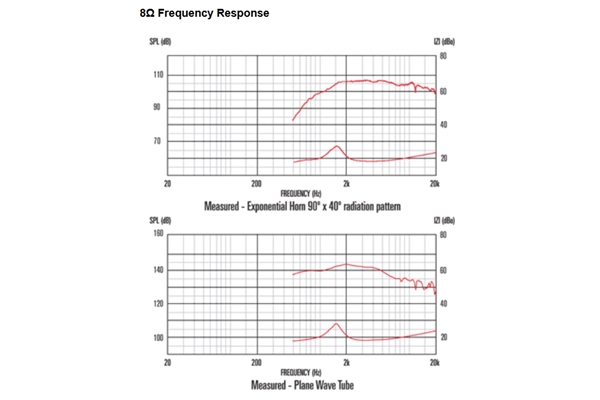

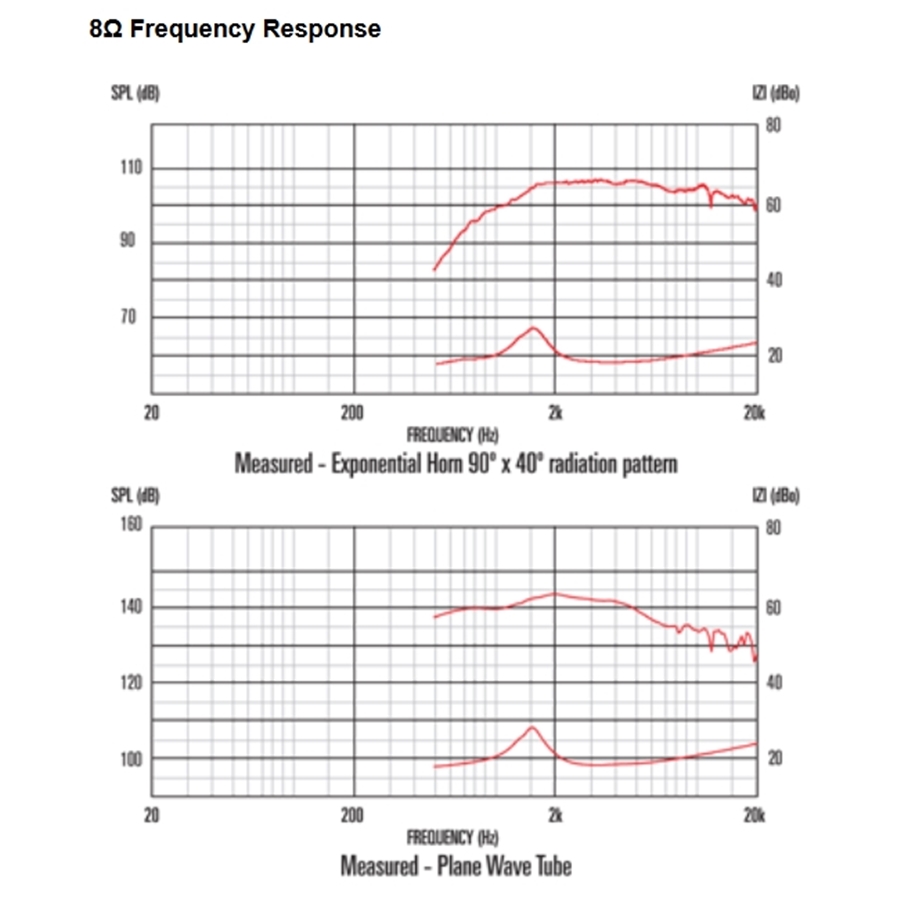

Frequency range: 1500-20,000Hz
Sensitivity(3): 106dB
Recommended min. crossover (12dB/oct): 2200Hz
Voice coil diameter: 35mm/1.4in
Voice coil material: Copper clad aluminium
Magnet type: Ferrite
Diaphragm material: PETP film
Surround material: PETP film

Informazioni di Montaggio
Width: 90mm/3.54in
Depth: 46.5mm/1.83in
Weight: 1kg/2.2lb
Fitting: Flange (4 x M6 holes on 76mm/3in PCD)
Throat exit: 25mm/1in

Trombe Compatibili
H1-9040P, H1-7050 "No Bell"

Note
(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
