PRODOTTO FUORI PRODUZIONE

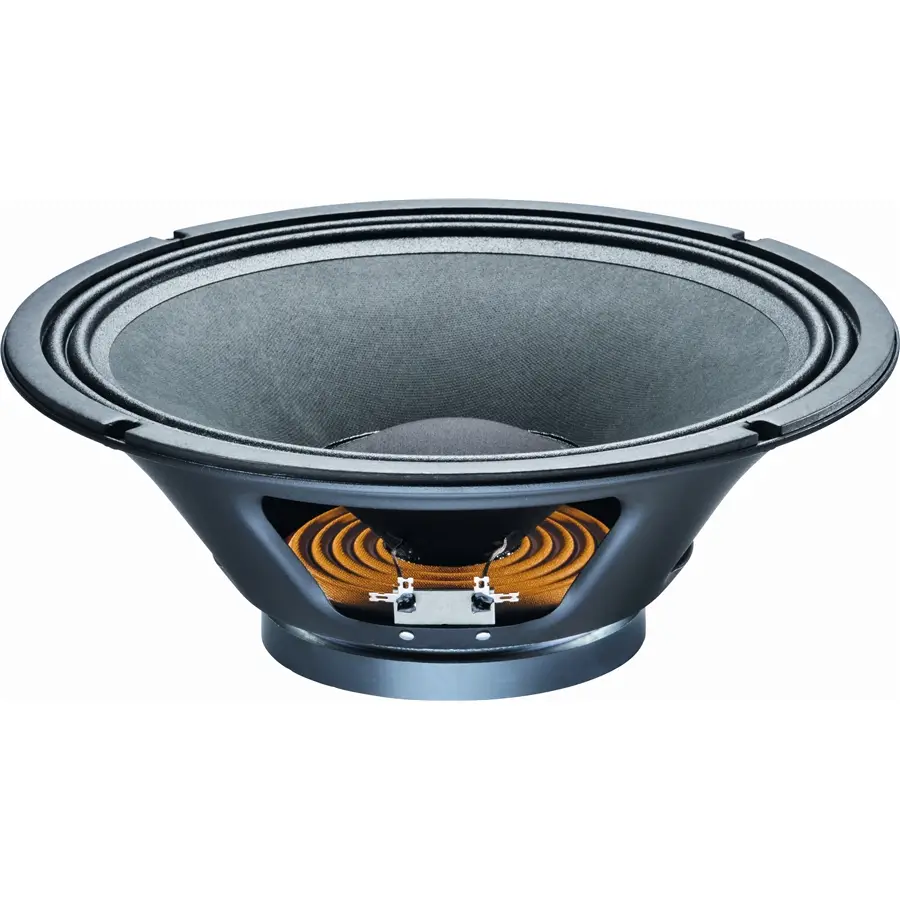

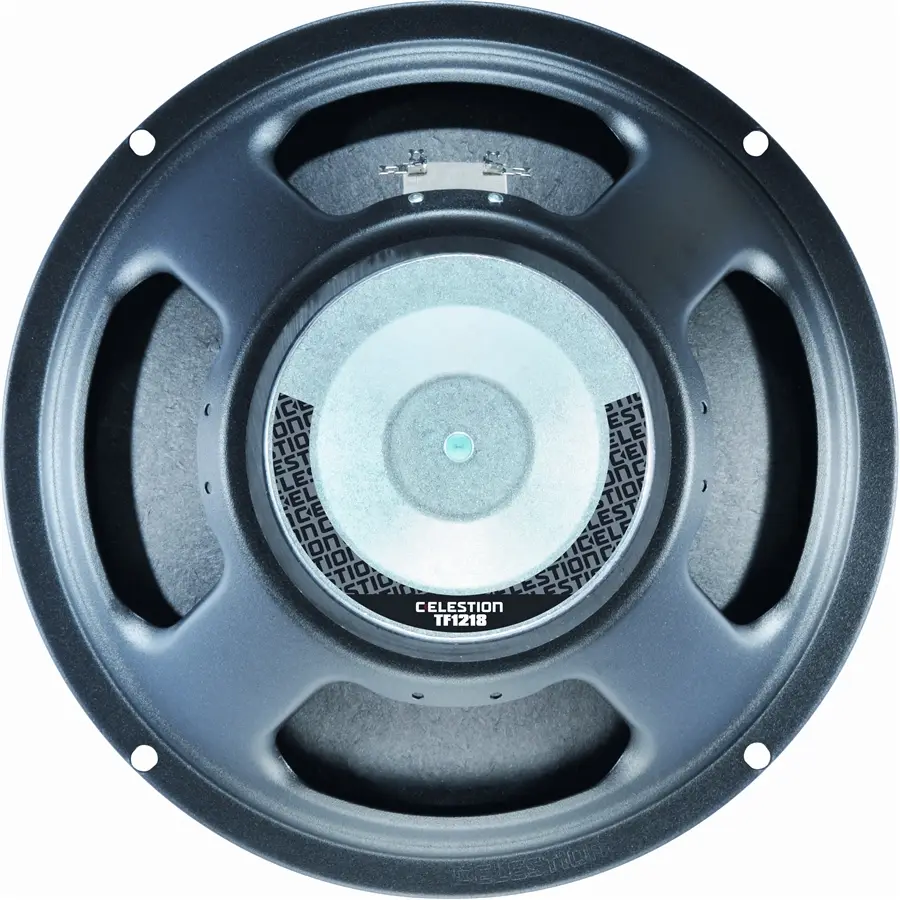

Altoparlante da 12" con chassis in acciaio stampato, magnete in ferrite, bobina da 1.75", potenza 100Watt, impedenza 8ohm
Caratteristiche
- 12" Bass and mid-range driver offering a superior price/performance ratio
- Provides 97dB sensitivity and 100Wrms (AES standard) power handling
- 1.75" High temperature copper voice coil wound on polyimide for increased reliability
- Kevlar-loaded cone with sealed surround and damping for reduced distortion
- Suitable for use in 2-way systems
Specifiche Generali
Nominal diameter: 305mm/12in
Power rating(1): 100Wrms
Continuous power rating(2): 200W
EIA power rating(3): 150W
Nominal impedance: 8ohm
Sensitivity(4): 97dB
Frequency range: 60-4500Hz
Voice coil diameter: 45mm/1.75in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.88kg/31oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(5): 2mm/0.08in
Gap depth: 6mm/0.24in
Voice coil winding width: 10mm/0.39in
Parametri di Thiele-Small
D: 0.26m/10.24in
Fs: 62Hz
Mms: 39.41g/1.39oz
Qms: 4.90
Qes: 0.72
Mmd: 32.50g/1.15oz
Qts: 0.63
Re: 5.55ohm
Vas: 66.6lt/2.35ft3
BI: 10.90Tm
Cms: 0.17mm/N
Rms: 3.14kg/s
Le (at 1kHz): 0.57mH
Informazioni di Montaggio
Overall diameter:309mm/12.17in
Overall depth: 125mm/4.92in
Cut-out diameter: 283mm/11.14in
Mounting slot dimensions: Ø7.9mm/0.31in
Number of mounting slots: 4
Mounting PCD range: 297mm/11.69in
Unit weight: 2.7kg/6.0lb
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Tested as per the EIA-426-A standard.
(4)Measured on axis at 1W, 1m in 2pi anechoic environment.
(5)Xmax derived from: (voice coil winding width-gap depth)/2.
(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
