Celestion - CDX14-3040 75W 8ohm HF Neodimio

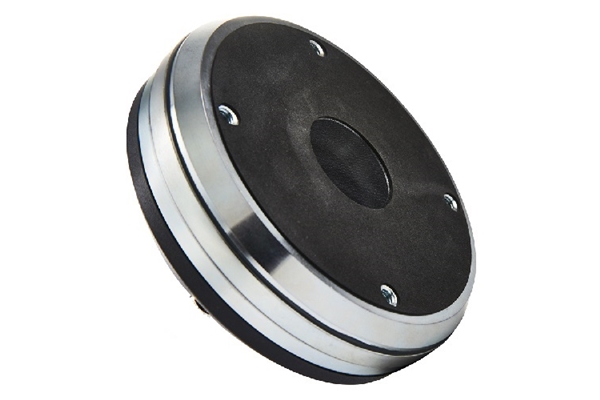

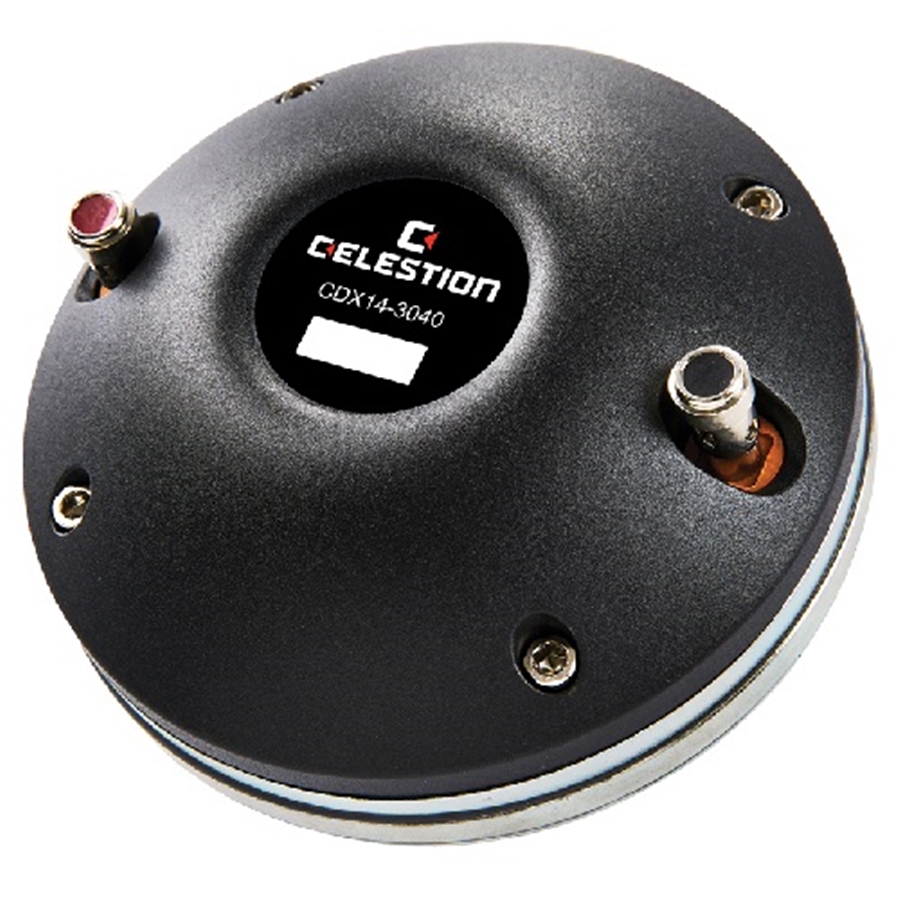

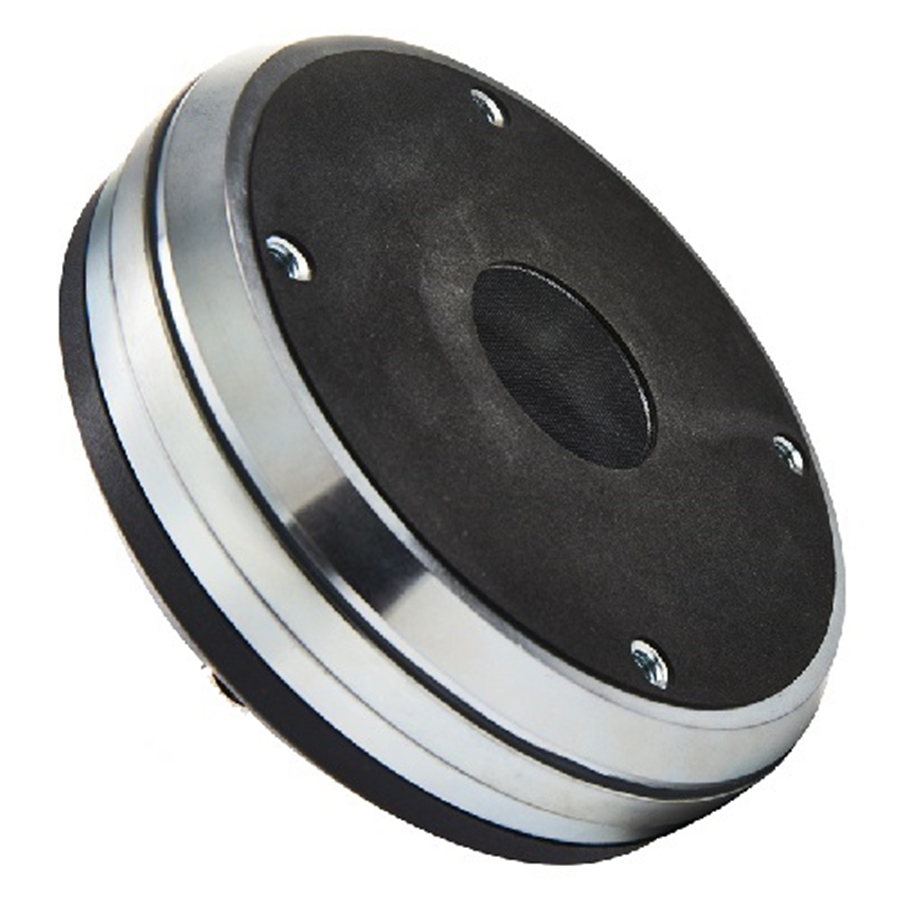

Celestion - CDX14-3040 75W 8ohm - HF Compression Driver - Neodimio
Driver a compressione con magnete in neodimio, uscita da 1.4", potenza 75Watt, impedenza 8ohm,
diaframma in titanio, fissaggio con viti (bolt).

Caratteristiche
-1,000Hz recommended min. crossover freq (12dB/oct)
-Single piece titanium diaphragm and surround

Specifiche Generali
Power rating(1): 75Wrms
Continuous power rating(2): 150W
Nominal impedance: 8ohm
Sensitivity(3): 106.5dB
Frequency range: 500-20,000Hz
Recommended min. crossover (12dB/oct): 1,000Hz
Voice coil diameter: 75mm/3in
Voice coil material: Edgewound copper clad aluminuim
Magnet type: Neodymio
Diaphragm material: Titanium
Surround material: Titanium

Informazioni di Montaggio
Maximum width: 135mm/5.3in
Depth: 68mm/2.7in
Weight: 1.4kg/3.1lb
Fitting: Flange(4 x M6 holes on 102mm/4in PCD)
Throat exit: 35mm/1.4in

Note
(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Rating is defined as 3dB greater than AES rating.
(3)Measured on axis at 1W, 1m, using typical horn, in 2pi anechoic environment.
