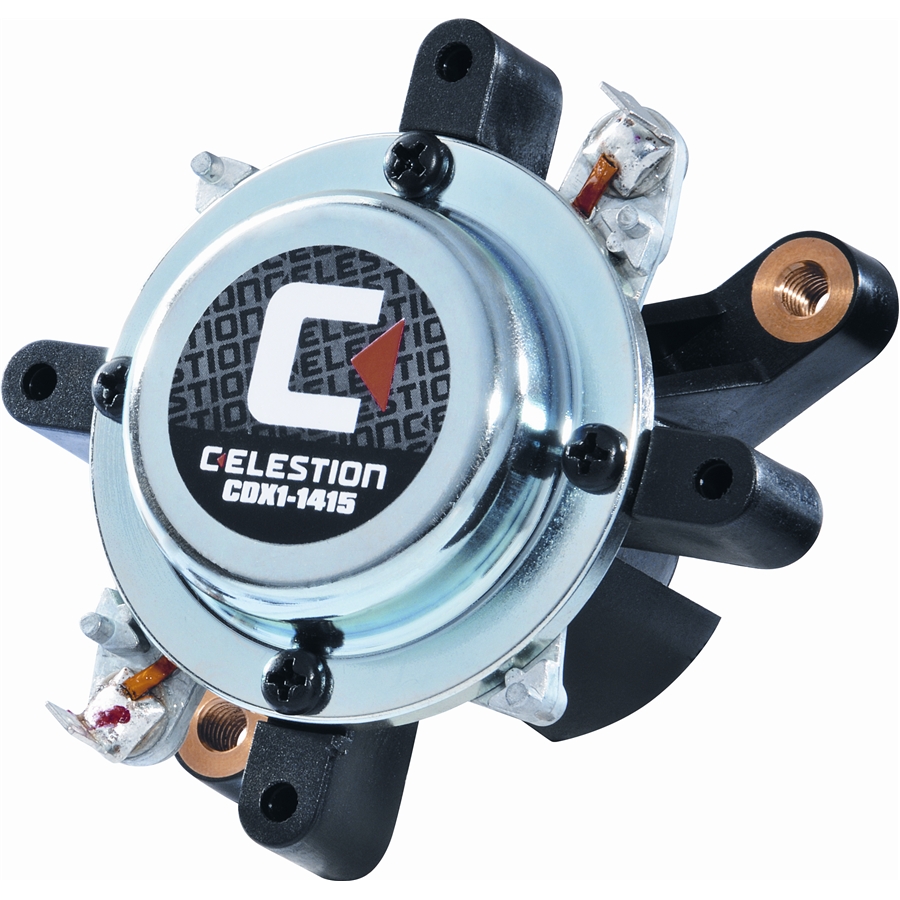

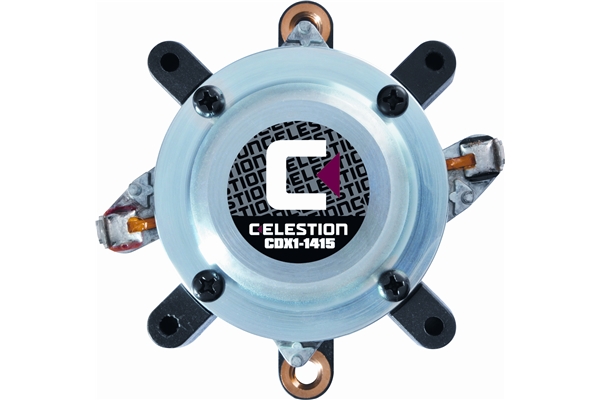

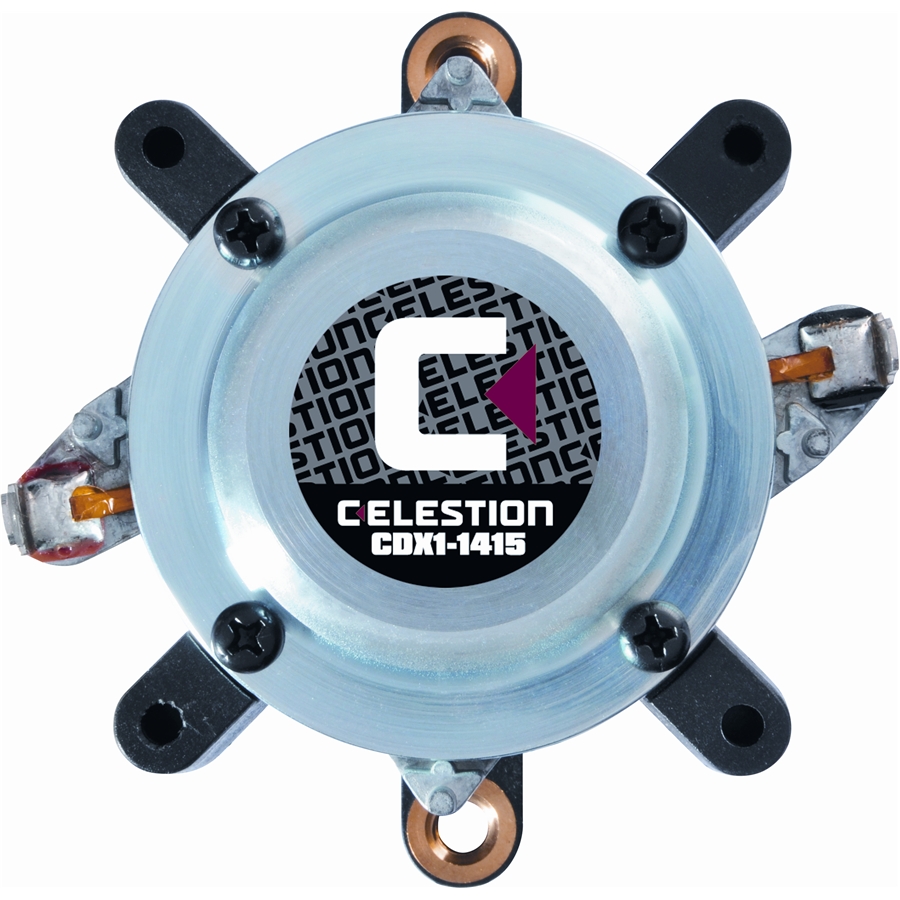

Celestion - CDX1-1415 20W 8ohm HF Neodimio

Celestion - CDX1-1415 20W 8ohm - HF Compression Driver - Neodimio
Driver a compressione con magnete in neodimio, uscita da 1", potenza 20Watt, impedenza 8ohm,
diaframma in alluminio, fissaggio con viti (bolt).

Caratteristiche
- 1" exit neodymium compression driver with 1.4" copper clad aluminium voice coil
- 20Wrms power handling (AES standard) and 104dB sensitivity
- Copper sleeve on pole reduces inductive rise for improved HF performance
- Ferrofluid in magnet gap prevents sensitivity loss through thermal compression
- Aluminium diaphragm combined with elastomer surround delivers lower distortion performance
- Compact pot magnet design reduces weight and minimises stray flux
- Suitable for 2-way and 3-way systems

Specifiche Generali
Power rating(1): 20Wrms
Continuous power rating(2): 40W
Nominal impedance: 8ohm
Sensitivity(3): 104dB

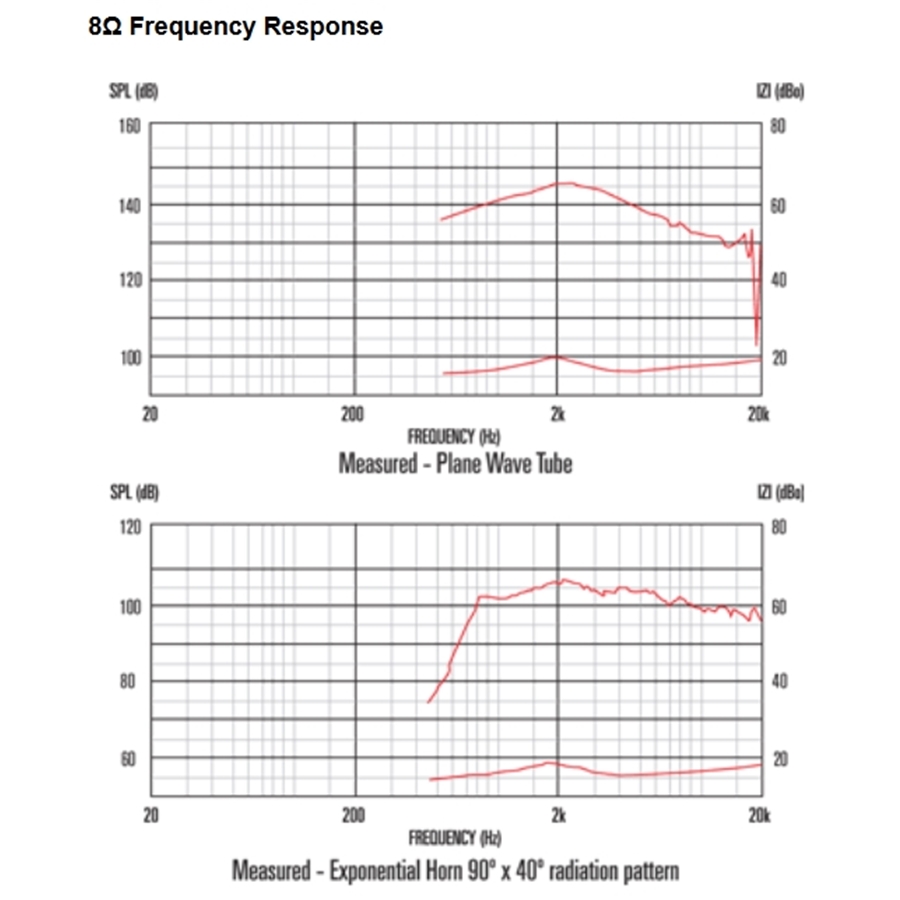

Frequency range: 2000-20,000Hz
Recommended min. crossover (12dB/oct): 2500Hz
Voice coil diameter: 35mm/1.4in
Voice coil material: Copper clad aluminium
Magnet type: Neodymium
Diaphragm material: Aluminium
Surround material: Elastomer

Informazioni di Montaggio
Maximum width: 90mm/3.5in
Depth: 57mm/2.2in
Weight: 0.25kg/0.6lb
Fitting: Flange (2 x M6 holes on 76mm, 3.0in PCD)
Throat exit: 25.4mm/1in

Trombe Compatibili
H1-9040P, H1-7050 "No Bell"

Note
(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
