Celestion - TN1530 300W 8ohm LF Neodimio

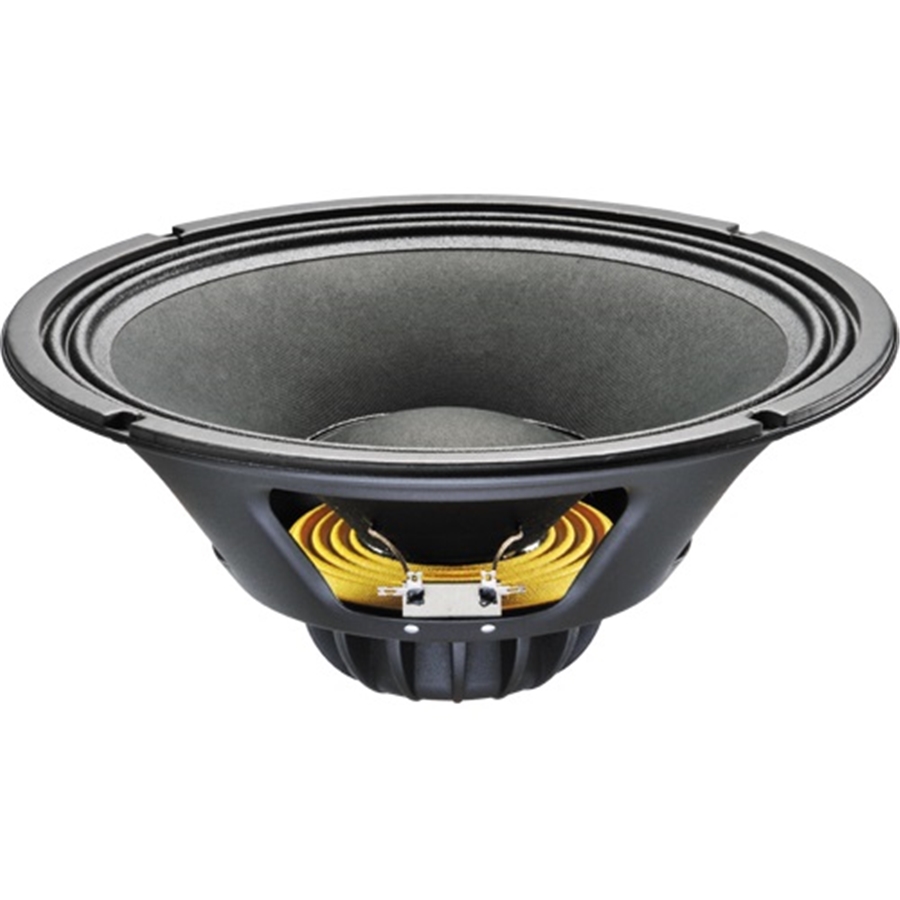

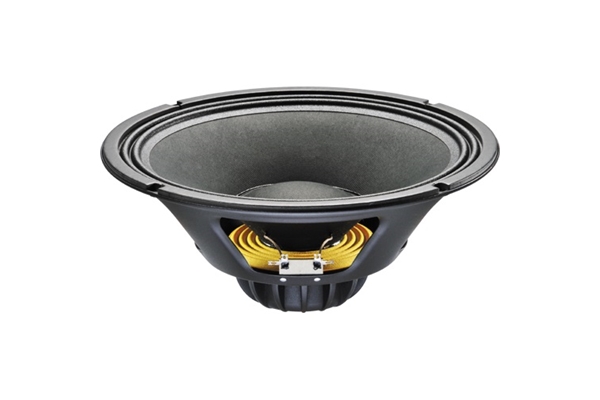

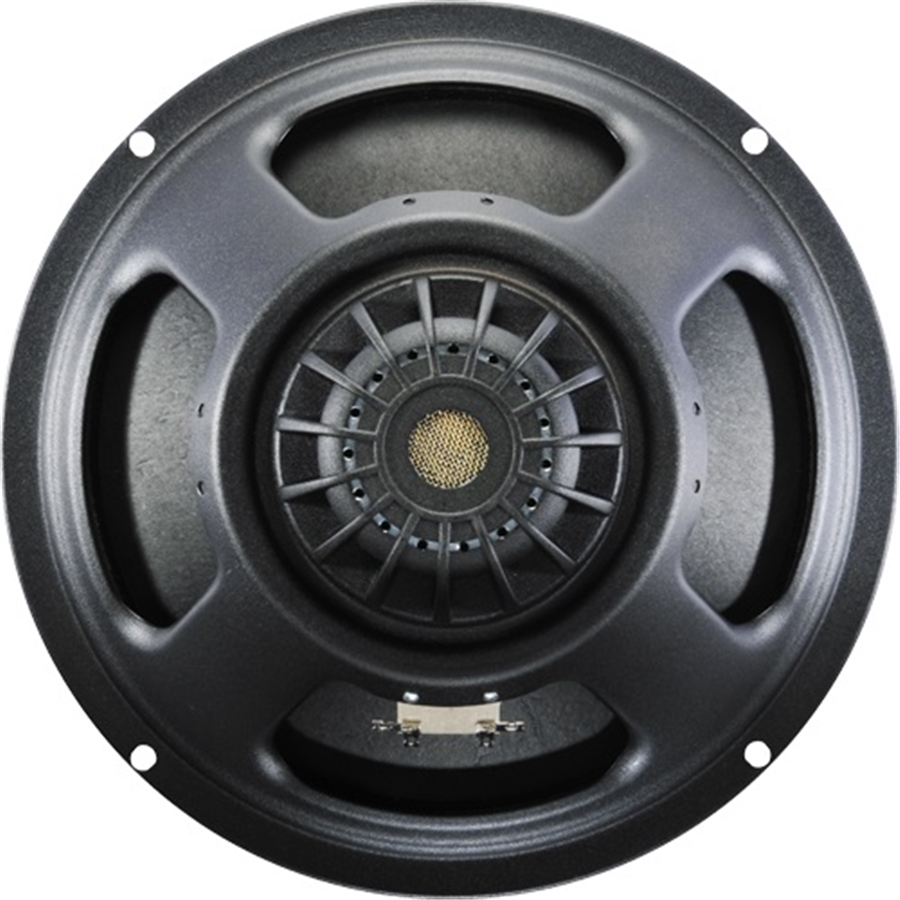

Celestion - TN1530 300W 8ohm - LF Pressed Steel Chassis Loudspeaker - Neodimio
Altoparlante da 15" con chassis in acciaio stampato, magnete in neodimio, bobina da 3", potenza 300Watt, impedenza 8ohm

Caratteristiche
- Compact, high flux, Dual Magnet Motor design
- Vented cast aluminium heatsink

Specifiche Generali
Nominal diameter: 381mm/15in
Power rating(1): 300Wrms
Continuous power rating(2): 600W
Sensitivity(2): 98dB
EIA power rating(3): 450W
Nominal impedance: 8ohm
Sensitivity(4): 98db

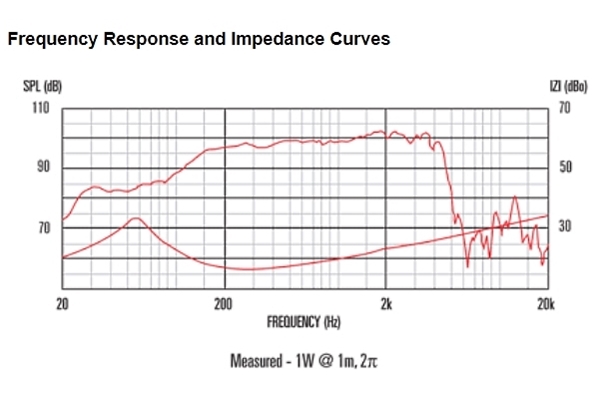

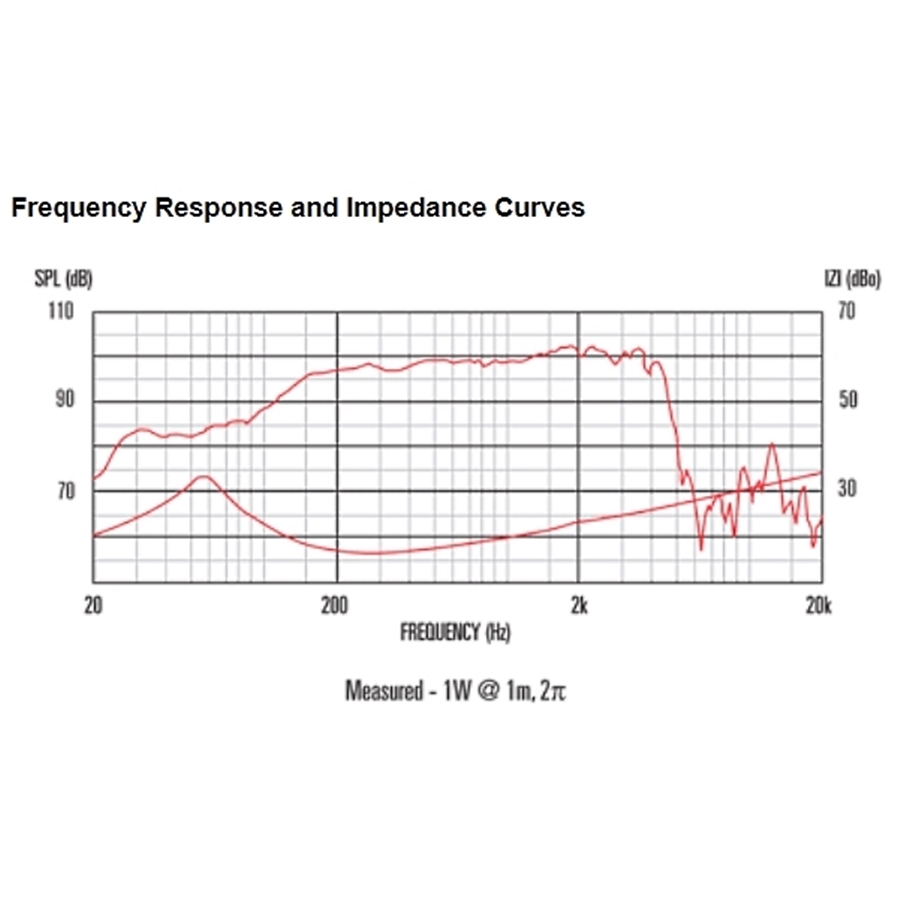

Frequency range: 40-3,000Hz
Voice coil diameter: 75mm/3in
Chassis type: Pressed steel
Magnet type: Neodymium
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(3): 3.75mm/0.148in
Gap depth: 10mm/0.39in
Voice coil winding width: 17.5mm/0.69in

Parametri di Thiele-Small
D: 0.33m/12.99in
Fs: 42.5Hz
Mms: 92.58g/3.27oz
Qms: 2.619
Qes: 0.358
Mmd: 84.85g/2.99oz
Qts: 0.315
Re: 5.38ohm
Vas: 156.55lt/5.53ft3
BI: 19.29Tm
Cms: 0.15mm/N
Rms: 9.45kg/s
Le (at 1kHz): 1.11mH

Informazioni di Montaggio
Overall diameter: 385mm/15.16in
Overall depth: 160mm/6.30in
Cut-out diameter: 352mm/13.86in
Mounting slot dimensions: 9.2mm x 6.2mm/0.36in x 0.24in
Number of mounting slots: 8
Mounting PCD range: 369mm/14.53in
Unit weight: 2.8kg/6.2lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.
Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Continuous Power Rating is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W, 1m in 2pi anechoic environment.
(4)Xmax derived from: (voice coil winding width-gap depth)/2.
(5)Small signal parameters measured after unit subjected to pre-conditioning signal.
