Celestion - TN1225 250W 8ohm LF Neodimio

Celestion - TN1225 250W 8ohm - LF Pressed Steel Chassis Loudspeaker - Neodimio

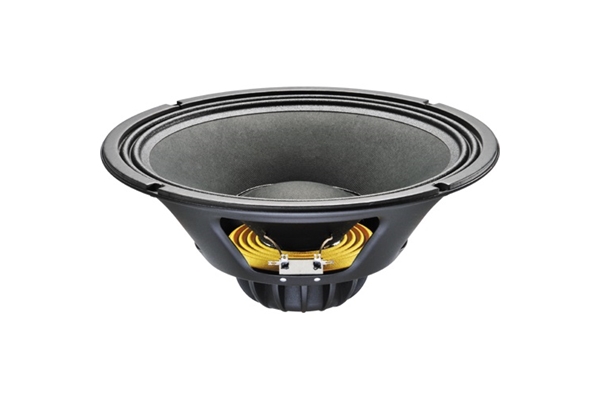

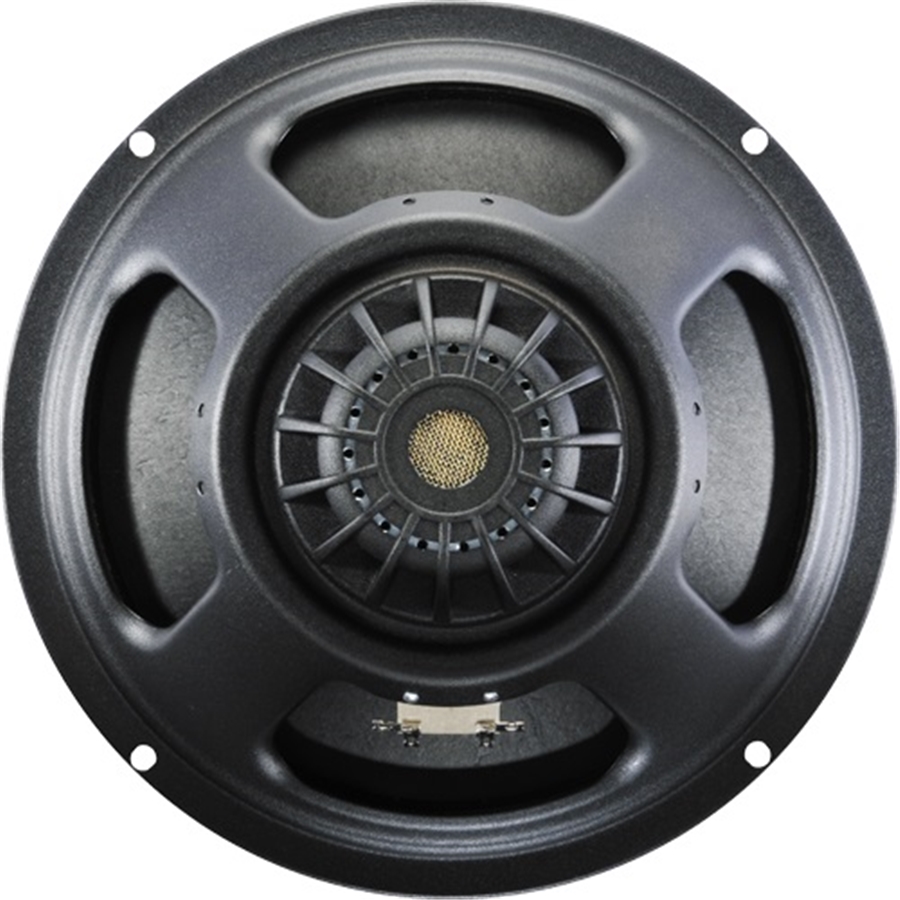

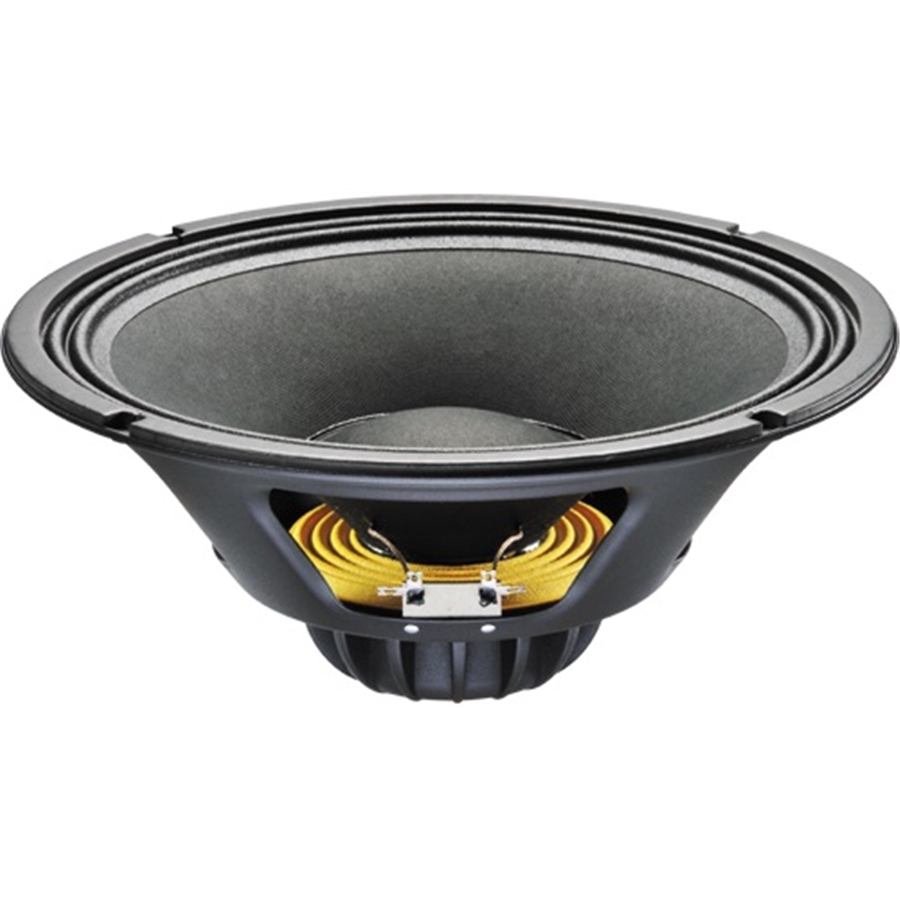

Altoparlante da 12" con chassis in acciaio stampato, magnete in neodimio, bobina da 2.5", potenza 250Watt, impedenza 8ohm

Caratteristiche
- Compact, high flux, Dual Magnet Motor design
- Vented cast aluminium heatsink

Specifiche Generali
Nominal Diameter: 305mm/12in
Power Rating(1): 250Wrms
Continuous Power Rating(2): 500W
Sensitivity(2): 99dB
EIA Power Rating(3): 400W
Nominal Impedance: 8ohm
Frequency Range: 50-4,000Hz
Voice Coil Diameter: 64mm/2.5in
Chassis Type: Pressed Steel
Magnet Type: Neodymium
Coil Material: Round Copper
Former Material: Polyimide
Cone Material: Kevlar Loaded Paper
Surround Material: Cloth-Sealed
Suspension: Single
Xmax(3): 2.5mm/0.099in
Gap Depth: 8mm/0.32in
Voice Coil Winding Width: 13mm/0.51in

Parametri di Thiele-Small(4)
D: 0.26m/10.24"
Fs: 61.4Hz
Mms: 42.12g/1.49oz
Qms: 3.118
Qes: 0.339
Mmd: 44.23g/1.74oz
Qts: 0.306
Re: 5.2ohm
Vas: 63.69lt/2.25ft3
BI: 15.79Tm
Cms: 0.16mm/N
Rms: 5.21kg/s
Le (at 1kHz): 0.65mH

Informazioni di Montaggio
Overall Diameter: 309mm/12.17in
Overall Depth: 132mm/5.20in
Cut-Out Diameter: 283mm/11.14in
Mounting Slot Dimensions: Ø7.9mm/0.31in
Number of Mounting Slots: 4
Mounting PCD Range: 297mm/11.69in
Unit Weight: 2.0kg/4.4lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.
Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Continuous Power Rating is defined as 3dB greater than the AES rating
(3)Measured on axis at 1W, 1m in 2pi anechoic environment.
(4)Xmax derived from: (voice coil winding width-gap depth)/2.
(5)Small signal parameters measured after unit subjected to pre-conditioning signal.
