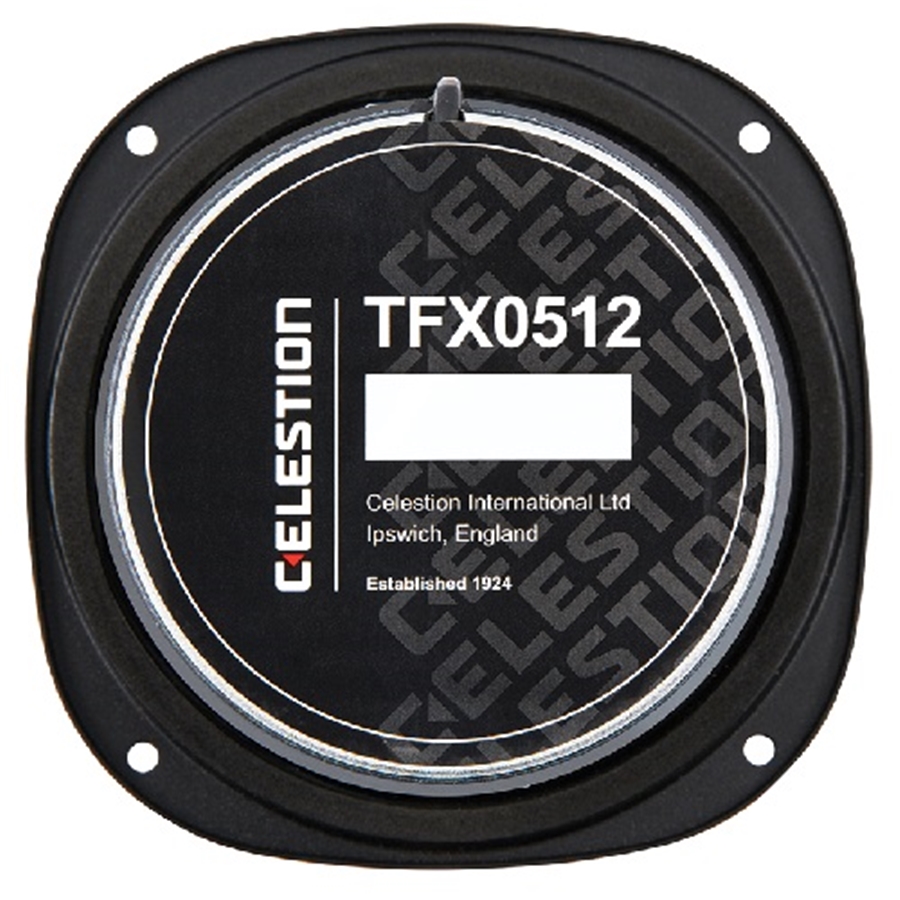

Celestion - TFX0512 100W 8ohm Coaxial

Celestion - TFX0512 100W 8ohm - Coaxial

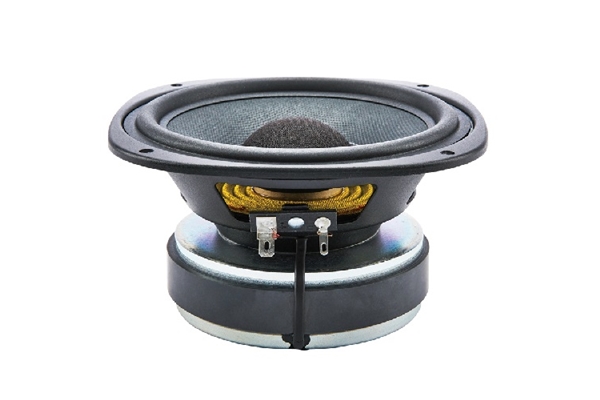

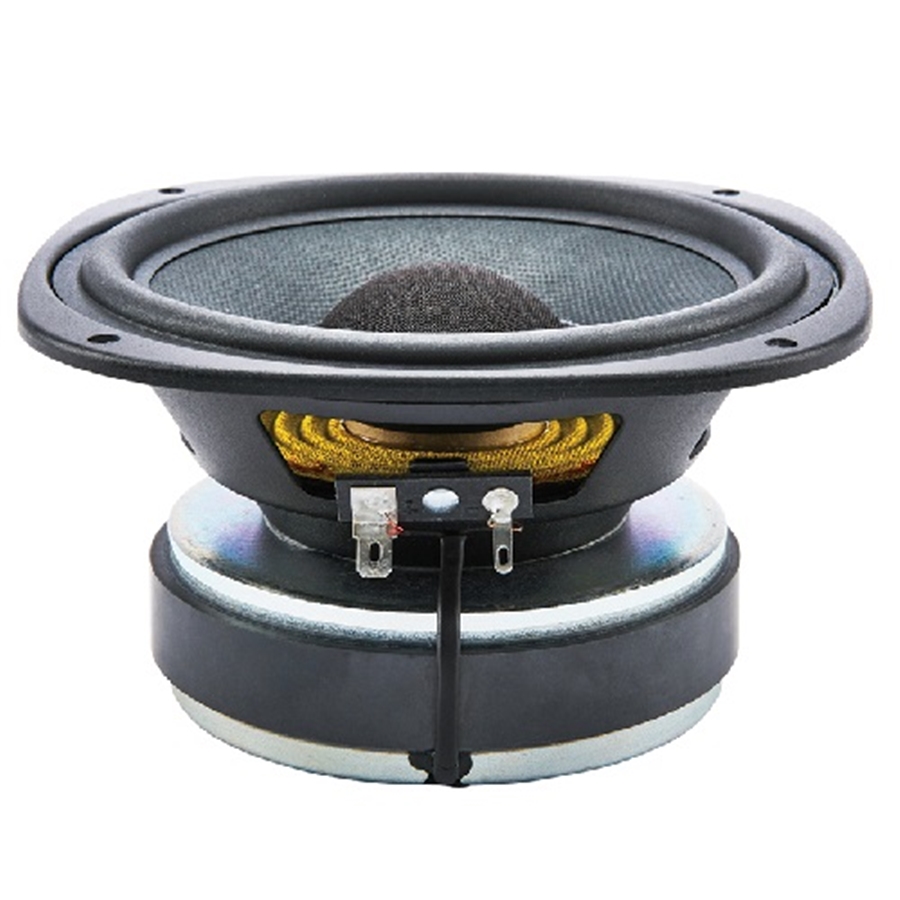

Altoparlante coassiale da 5" con chassis in acciaio stampato, magnete in ferrite, bobina da 1.25", potenza 100Watt, impedenza 8ohm

Caratteristiche
- Silk dome tweeter
- Integrated HF waveguide
- 100° nominal HF coverage

Specifiche Generali
Size: 125mm/5in
Power rating(1): 100Wrms
Continuous power rating(2): 200W
Nominal impedance: 8ohm
Sensitivity(3): 92dB
Frequency range: 70-4,000Hz
Voice coil diameter: 32mm/1.25in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.48kg/17oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Elastomer
Suspension: Single
Xmax(4): 3.25mm/0.13in
Gap depth: 6mm/0.24in
Voice coil winding width: 12mm/0.47in

Parametri di Thiele-Small
D: 100mm/3.94in
Fs: 69.1Hz
Mms: 8.6g/0.3oz
Qms: 6.184
Qes: 0.494
Qts: 0.46
Re: 5.45ohm
Vas: 5.38l/0.19ft3
BI: 6.42Tm
Cms: 0.62mm/N
Rms: 0.6kg/s
Le (at 1kHz): 0.37mH

Specifiche Generali HF
Power rating(1): 8Wrms
Continuous power rating(5): 16W
Nominal impedance: 8ohm
Sensitivity(2): 97dB
Frequency range: 2,000-20,000Hz
Recommended min. crossover (12dB/oct): 2,500Hz
Voice coil diameter: 19mm/0.75in
Magnet type: Neodymium
Diaphragm and surround material: Silk

Informazioni di Montaggio
Diameter: 151mm/5.9in (max)
Overall depth: 72mm/2.8in
Cut-out diameter: 116mm/4.6in
Number of mounting slots: 4
Mounting PCD range: 140mm/5.5in
Unit weight: 2kg/4.4lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.
Power calculated on minimum impedance, loudspeaker tested in free air.
(2)Continuous Power Rating is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W, 1m in 2pi anechoic environment
(4)Xmax derived from: (voice coil winding width-gap depth)/2
(5)Continuous Power Handling is defined as 3dB greater than the AES rating.
