Celestion - TF1520 150W 8ohm LF Ferrite

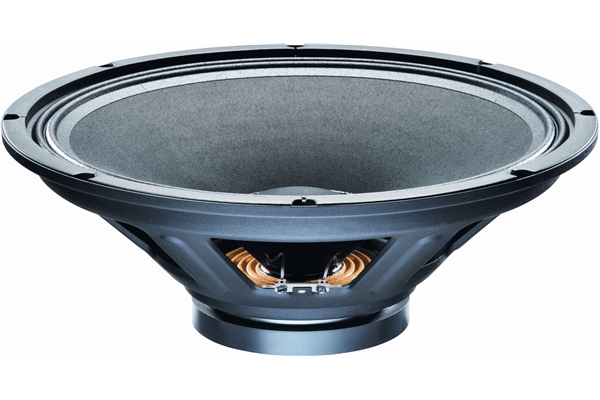

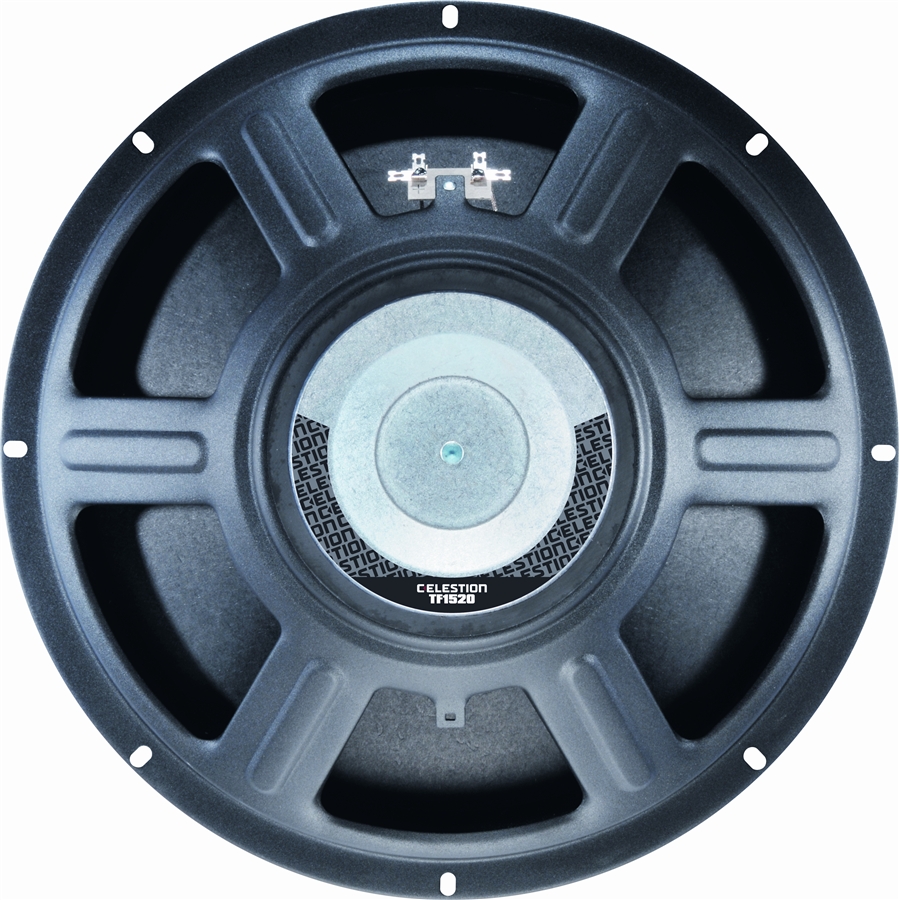

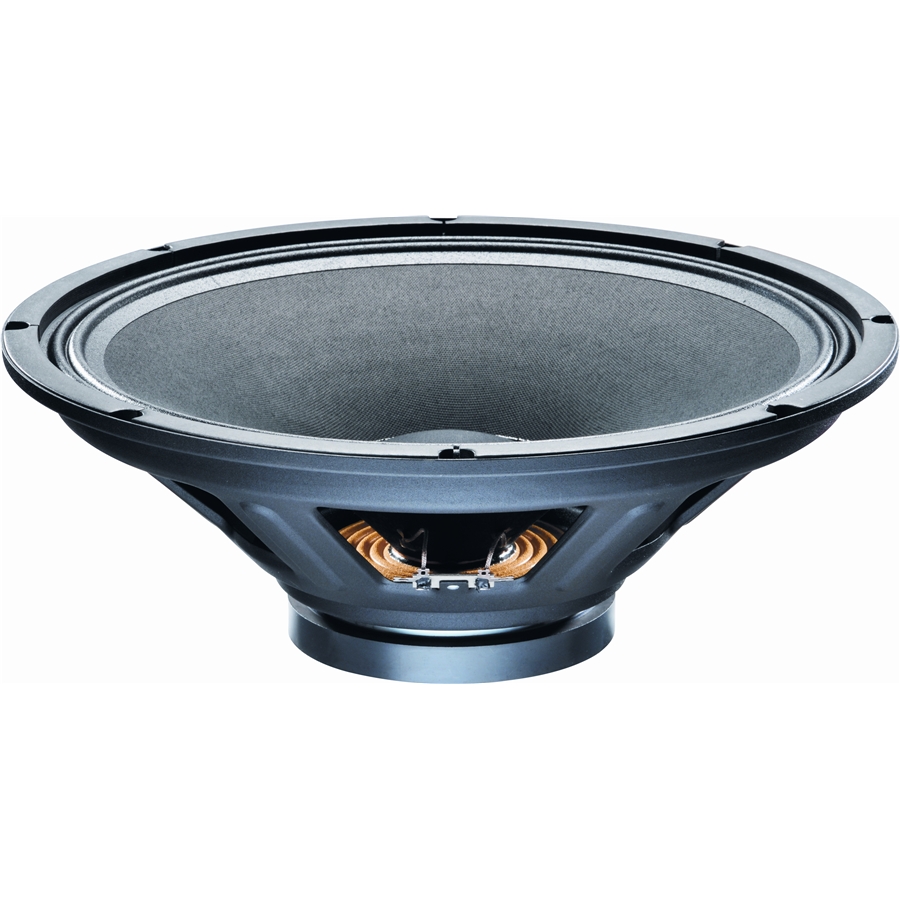

Celestion - TF1520 150W 8ohm - LF Pressed Steel Chassis Loudspeaker - Ferrite
Altoparlante da 15" con chassis in acciaio stampato, magnete in ferrite, bobina da 2", potenza 150Watt, impedenza 8ohm

Caratteristiche
- Versatile 15" bass and mid-range driver providing 96dB sensitivity and 150Wrms (AES standard) power handling
- 2" high temperature copper voice coil wound on polyimide for increased reliability
- Ideal for 2-way and 3-way systems
- Kevlar-loaded cone with sealed surround and damping for reduced distortion
- Rigid chassis design for maximum energy transfer
- Vented magnet assembly for enhanced cooling

Specifiche Generali
Nominal diameter: 381mm/15in
Power rating(1): 150Wrms
Continuous power rating(2): 300W
EIA power rating(3): 250W
Nominal impedance: 8ohm
Sensitivity(4): 96dB

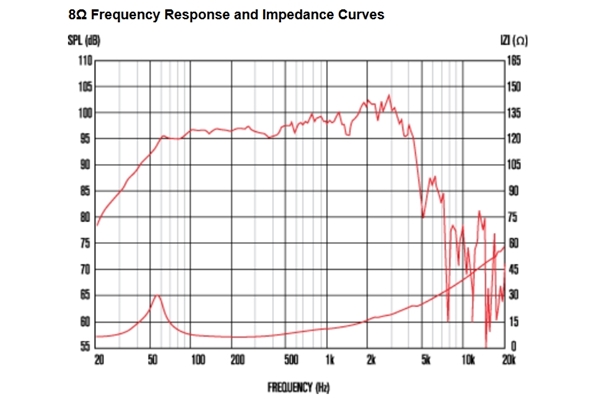

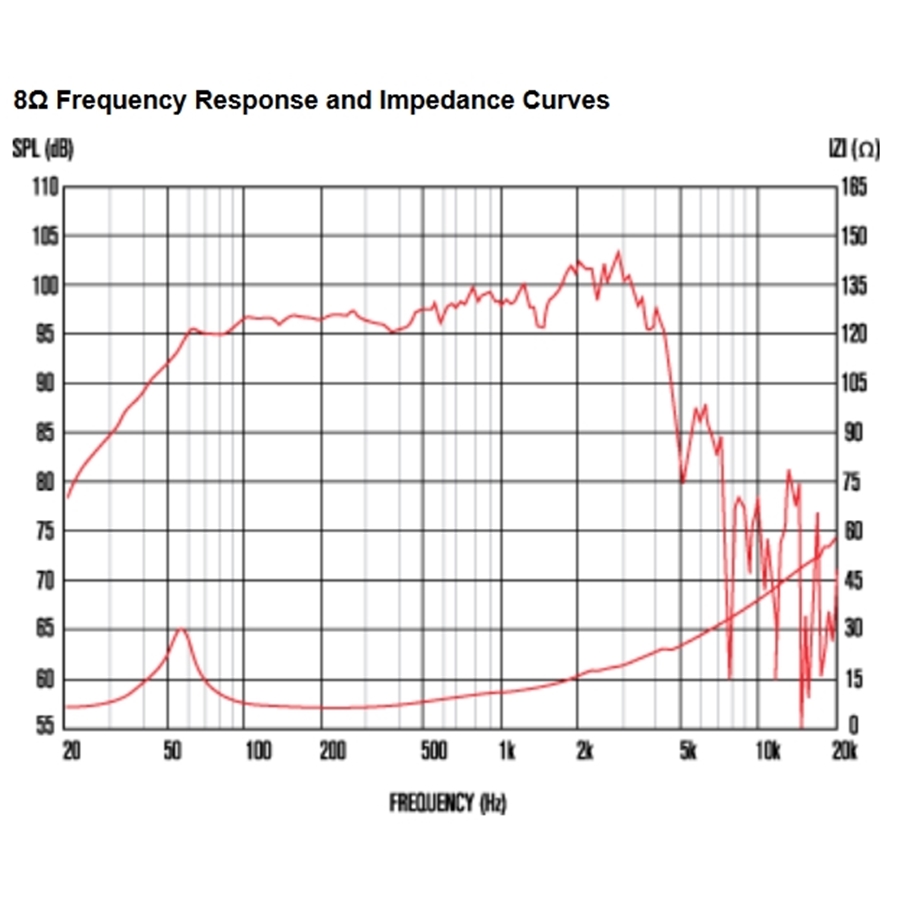

Frequency range: 45-4000Hz
Voice coil diameter: 50mm/2in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 1.1kg/40oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(5): 3mm/0.12in
Gap depth: 8mm/0.24in
Voice coil winding width: 14.5mm/0.57in

Parametri di Thiele-Small
D: 0.33m/12.99in
Fs: 51.7Hz
Mms: 62.33g/2.2oz
Qms: 6.69
Qes: 0.85
Mmd: 48.18g/1.7oz
Qts: 0.75
Re: 5.95ohm
Vas: 157.69lt/5.57ft3
BI: 11.93Tm
Cms: 0.15mm/N
Rms: 3.03kg/s
Le (at 1kHz): 1.41mH

Informazioni di Montaggio
Overall diameter: 385mm/15.16in
Overall depth: 158mm/6.22in
Cut-out diameter: 352mm/13.86in
Mounting slot dimensions: 9.4mm x 6.3mm/0.37in x 0.25in
Number of mounting slots: 8
Mounting PCD range: 370mm/14.57in
Unit weight: 5.0kg/11.0lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Tested as per the EIA-426-A standard
(4)Measured on axis at 1W, 1m in 2pi anechoic environment.
(5)Xmax derived from: (voice coil winding width-gap depth)/2.
(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
