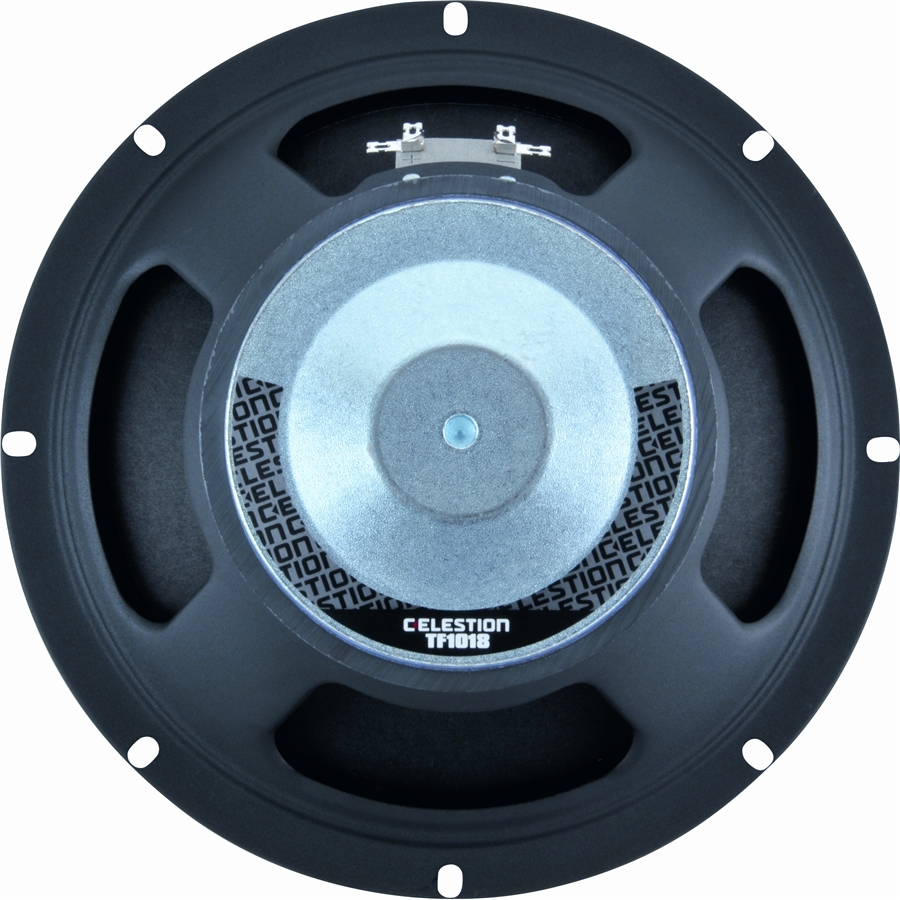

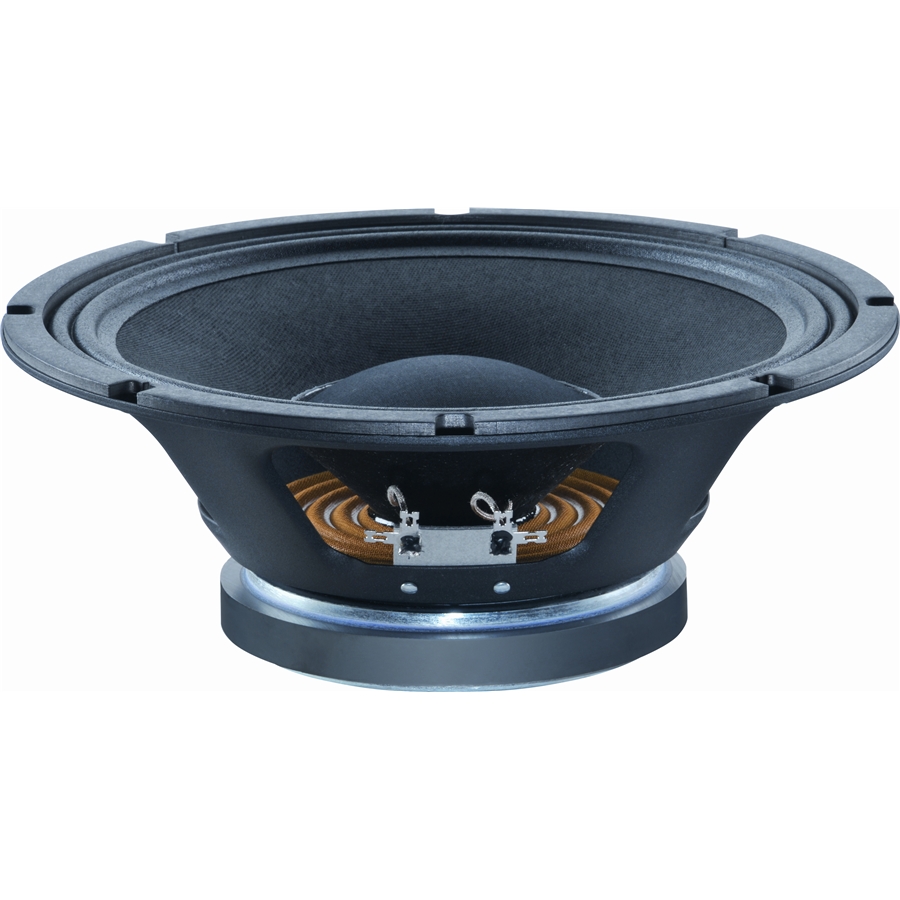

Celestion - TF1018 100W 8ohm LF Ferrite

Celestion - TF1018 100W 8ohm - LF Pressed Steel Chassis Loudspeaker - Ferrite
Altoparlante da 10" con chassis in acciaio stampato, magnete in ferrite, bobina da 1.75", potenza 100Watt, impedenza 8ohm

Caratteristiche
- 10" driver providing 96dB sensitivity and 100Wrms (AES standard) power handling
- 1.75" high temperature copper voice coil wound on polyimide for increased reliability
- Superior bass and mid-range performance
- Rigid chasis design for maximum energy transfer
- Vented magnet assembly for enhanced cooling
- Excellent price/performance ratio

Specifiche Generali
Nominal diameter: 254mm/10in
Power rating(1): 100Wrms
Continuous power rating(2): 200W
EIA power rating(3): 150W
Nominal impedance: 8ohm
Sensitivity(4): 96dB
Frequency range: 70-6000Hz
Voice coil diameter: 45mm/1.75in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 0.88kg/31oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(5): 2mm/0.08in
Gap depth: 6mm/0.24in
Voice coil winding width: 10mm/0.39in

Parametri di Thiele-Small
D: 0.21m/8.27in
Fs: 79.8Hz
Mms: 28.31g/0.99oz
Qms: 3.381
Qes: 0.624
Mmd: 24.67g/0.87oz
Qts: 0.527
Re: 5.73ohm
Vas: 23.84lt/0.841ft3
BI: 11.42Tm
Cms: 0.14mm/N
Rms: 4.199kg/s
Le (at 1kHz): 0.54mH

Informazioni di Montaggio
Overall diameter: 256mm/10.08in
Overall depth: 102mm/4.02in
Cut-out diameter: 229mm/9.02in
Mounting slot dimensions: 8mm x 6mm/0.31in x 0.24in
Number of mounting slots: 4
Mounting PCD range: 245mm/9.65in
Unit weight: 2.4kg/5.3lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Tested as per the EIA-426-A standard.
(4)Measured on axis at 1W, 1m in 2pi anechoic environment.
(5)Xmax derived from: (voice coil winding width-gap depth)/2.
(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
