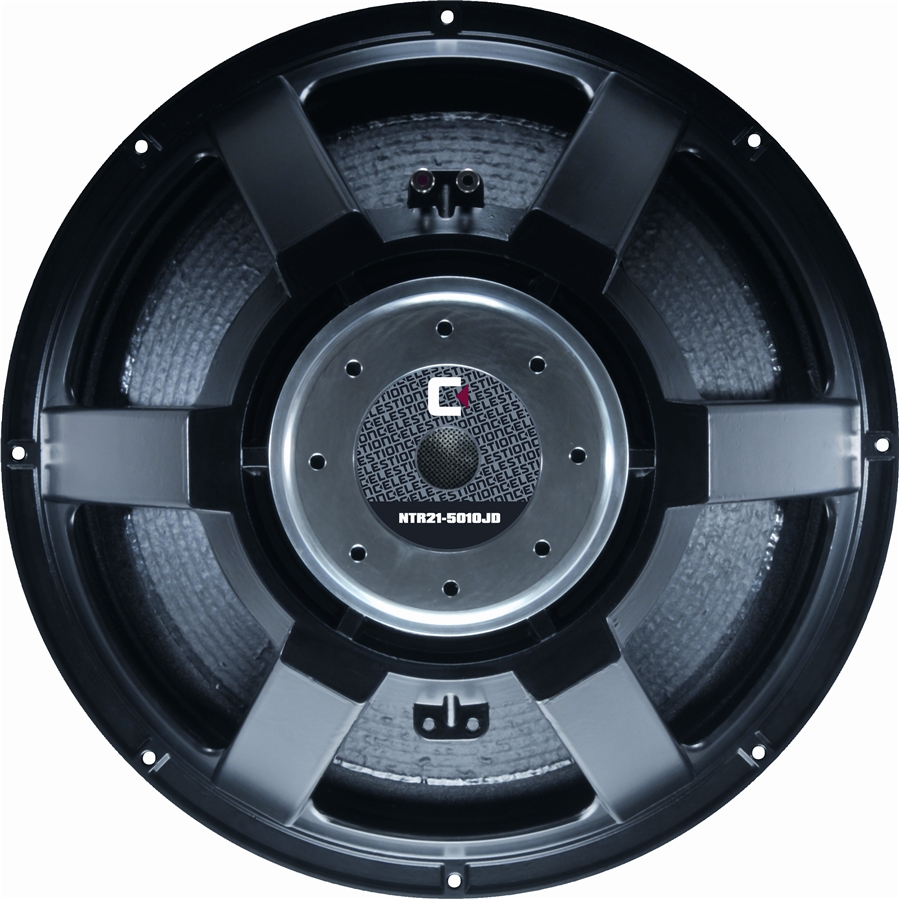

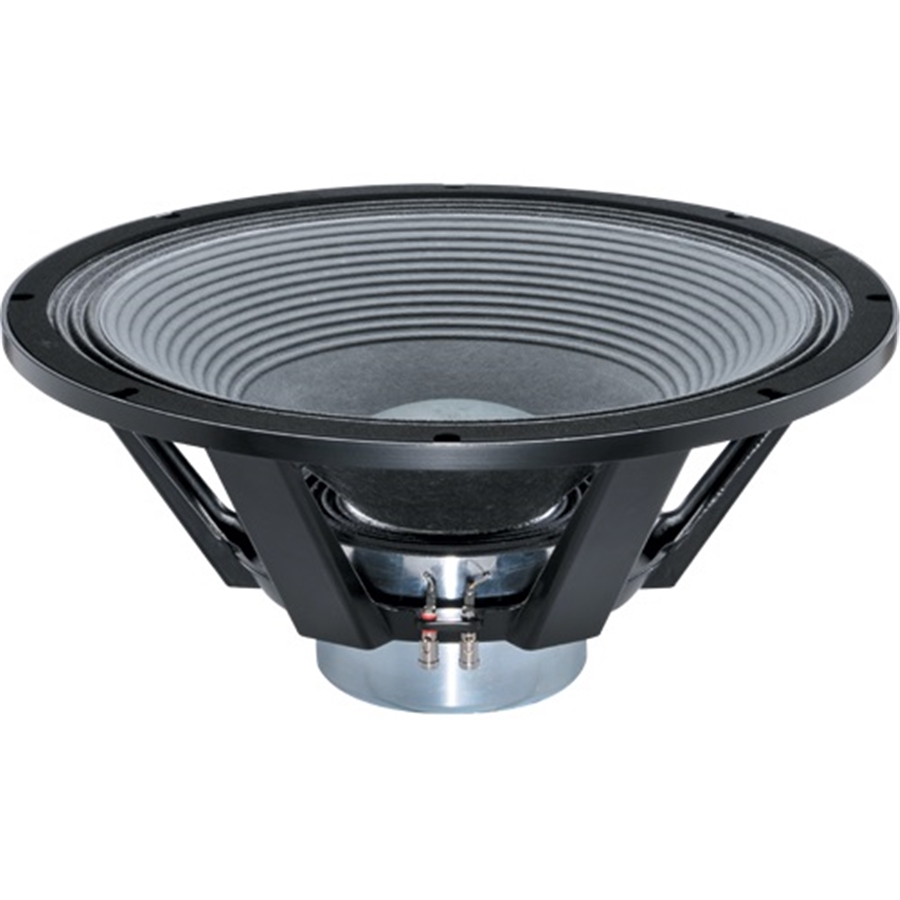

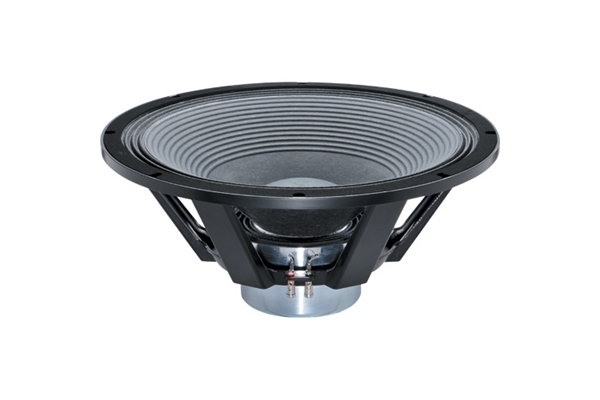

Celestion - NTR21-5010JD 1600W 8ohm LF Neodimio

Celestion - NTR21-5010JD 1600W 8ohm - LF Die Cast Chassis Loudspeaker - Neodimio
Altoparlante da 21" con chassis in fusione d'alluminio, magnete in neodimio, bobina da 5", potenza 1600Watt, impedenza 8ohm

Voglia di audio Fai da Te? Per il progetto di un Sub con doppio woofer da 21", clicca qui
Design curato, collaudato e messo a disposizione direttamente da Celestion.

Caratteristiche
- 21" neodymium subwoofer offers 1600Wrms (AES standard) power handling and 98dB sensitivity
- 5" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression
- Double suspension and a "multi-roll" surround provide exceptional linearity at extremes of cone excursion
- Rigid lightweight carbon fibre loaded cone delivers improved performance and faster response
- Intelligent heat management in both chassis and magnet assembly design further minimizes distortion

Specifiche Generali
Nominal diameter: 530mm/21in
Power rating(1): 1600Wrms
Nominal impedance: 8ohm
Sensitivity(2): 98dB
Frequency range: 30-3000Hz
Voice coil diameter: 125mm/5in
Chassis type: Cast aluminium
Magnet type: Neodymium
Coil material: Round copper
Former material: Glass fibre
Cone material: Carbon fibre loaded paper
Surround material: Cloth-sealed
Suspension: Double
Xmax(3): 9mm/0.35in
Gap depth: 12mm/0.47in
Voice coil winding width: 30mm/1.18in

Parametri di Thiele-Small
D: 0.46m/18.11in
Fs: 30.2Hz
Mms: 318.85g/11.26oz
Qms: 5.231
Qes: 0.309
Mmd: 280.52g/9.9oz
Qts: 0.291
Re: 5.36ohm
Vas: 341.43lt/12.05ft3
BI: 32.39Tm
Cms: 0.087mm/N
Rms: 11.55Kg/s
Le (at 1kHz): 2.063mH

Informazioni di Montaggio
Overall diameter: 550mm/21.65in
Overall depth: 254mm/10in
Cut-out diameter: 492mm/19.37in
Mounting slot dimensions: 12.5mm x 8.5mm/0.49in x 0.33in
Number of mounting slots: 8
Mounting slot PCD range: 520-528mm/20.5-20.8in
Unit weight: 12.8kg/28.2lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
(4)Small signal parameters measured after unit subjected to pre-conditioning signal.
