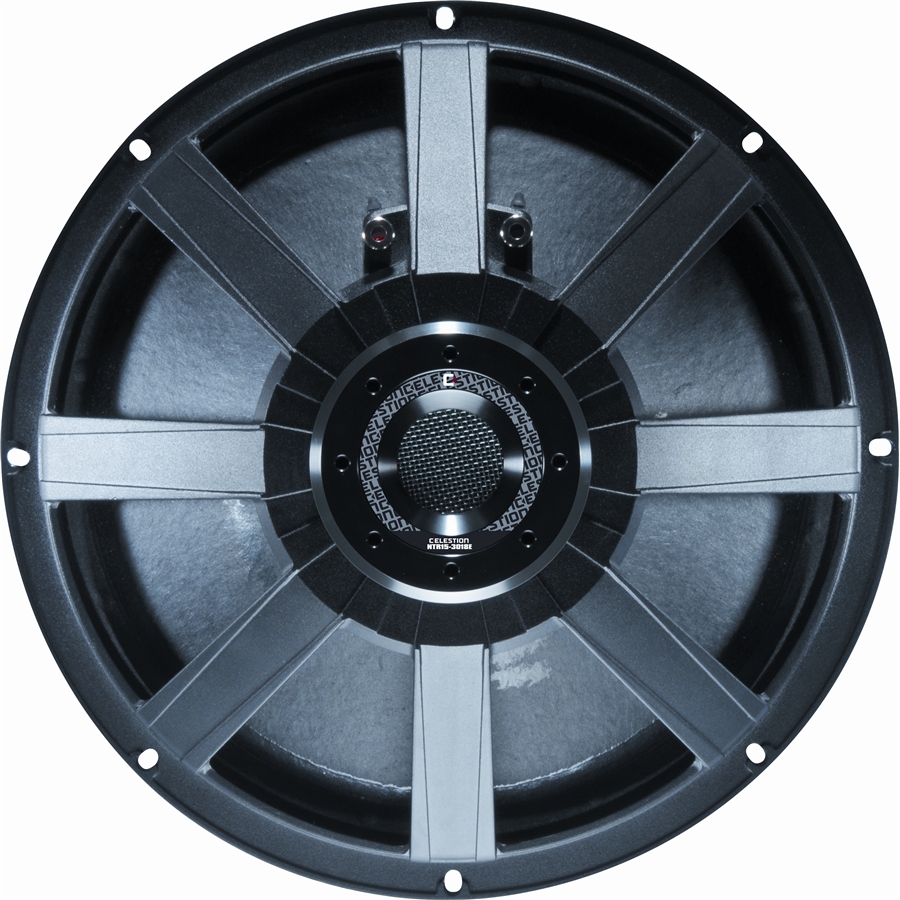

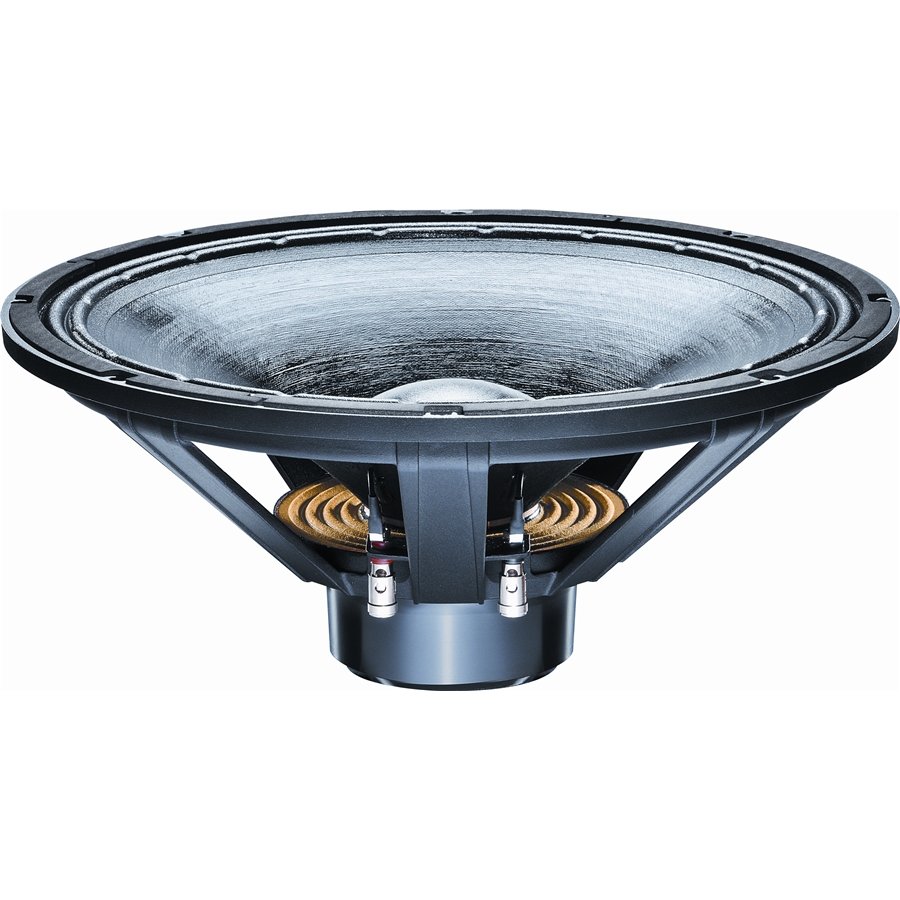

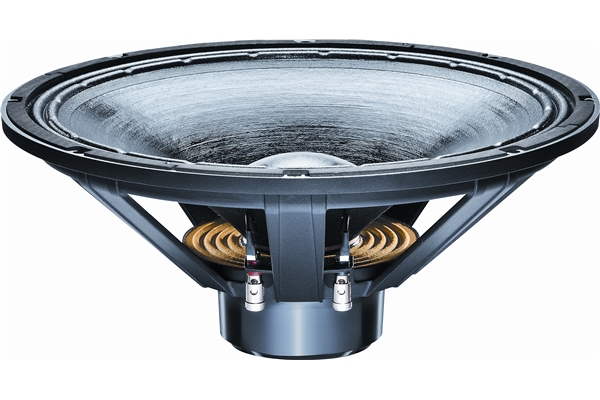

Celestion - NTR15-3018E 450W 8ohm LF Neodimio

Celestion - NTR15-3018E 450W 8ohm - LF Die Cast Chassis Loudspeaker - Neodimio
Altoparlante da 15" con chassis in fusione d'alluminio, magnete in neodimio, bobina da 3", potenza 450Watt, impedenza 8ohm

Caratteristiche
- 15" neodymium woofer offers 450Wrms (AES standard) power handling and 98dB sensitivity
- 3" edgewound voice coil for higher efficiency and excellent distortion control
- "M-Roll" surround provides progressive excursion control, yielding a smooth response even at extremes of frequency range
- Extremely lightweight design combined with a highly efficient magnet assembly results in exceptional power-to-weight ratio
- Intelligent heat management in both chassis and magnet assembly design further minimizes distortion

Specifiche Generali
Nominal diameter: 381mm/15in
Power rating(1): 450Wrms
Nominal impedance: 8ohm
Sensitivity(2): 98dB
Frequency range: 30-3000Hz
Voice coil diameter: 75mm/3in
Chassis type: Cast aluminium
Magnet type: Neodymium
Coil material: Flat copper
Former material: Glass fibre
Cone material: Glass loaded paper with weather-resistant coating
Surround material: Cloth-sealed
Suspension: Single
Xmax(3): 5mm/0.20in
Gap depth: 10mm/0.39in
Voice coil winding width: 20mm/0.79in

Parametri di Thiele-Small
D: 0.33m/12.9in
Fs: 34.6Hz
Mms: 97.24g/3.43oz
Qms: 3.856
Qes: 0.262
Mmd: 83.09g/2.93oz
Qts: 0.246
Re: 5.58ohm
Vas: 225.71lt/7.97ft3
BI: 21.2Tm
Cms: 0.218mm/N
Rms: 5.477Kg/s
Le (at 1kHz): 1.18mH

Informazioni di Montaggio
Overall diameter: 386mm/15.2in
Overall depth: 162mm/6.38in
Cut-out diameter: 351mm/13.8in
Mounting slot dimensions: 10mm x 7mm/0.4in x 0.27in
Number of mounting slots: 8
Mounting slot PCD range: 367-373mm/14.4-14.7in
Unit weight: 4.0kg/8.8lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
(4)Small signal parameters measured after unit subjected to pre-conditioning signal.
