Celestion - NTR08-2009D 200W 8ohm LF Neodimio

Celestion - NTR08-2009D 200W 8ohm - LF Die Cast Chassis Loudspeaker - Neodimio

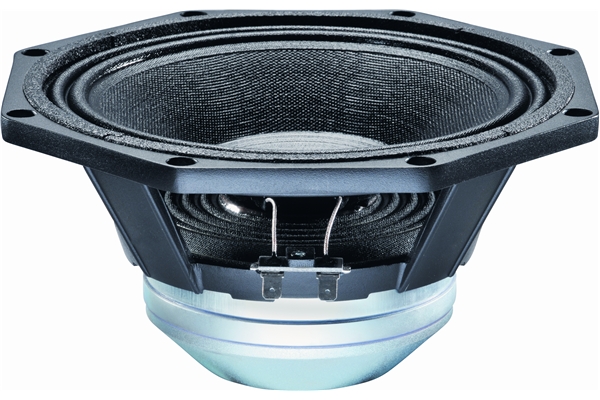

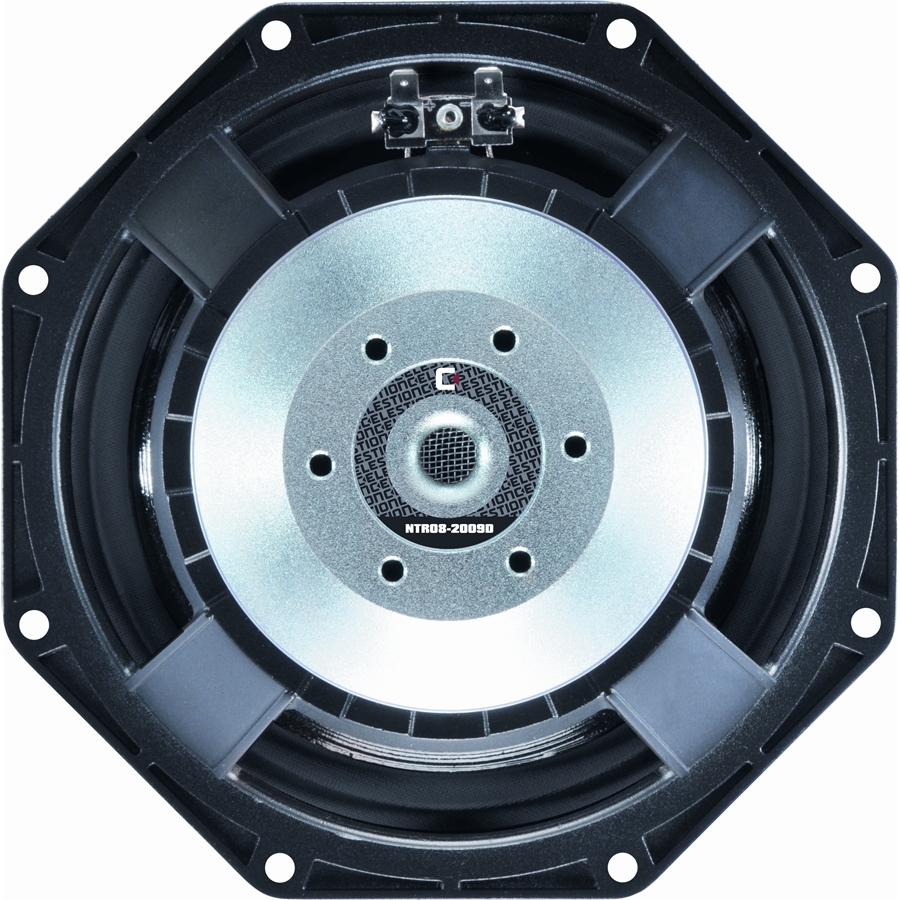

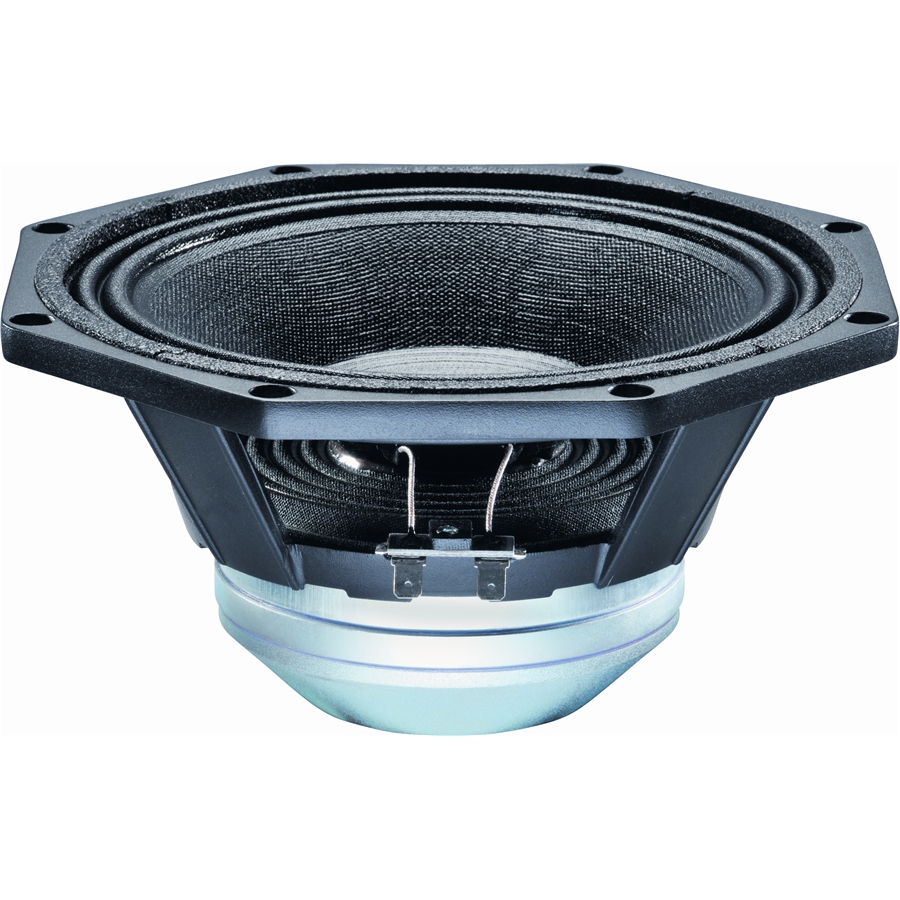

Altoparlante da 8" con chassis in fusione d'alluminio, magnete in neodimio, bobina da 2", potenza 200Watt, impedenza 8ohm

Caratteristiche
- 8" neodymium magnet driver providing 200Wrms (AES standard) power handling and 94.5dB sensitivity
- 2" edgewound copper voice coil
- Suitable for line array applications, utilizing a space-efficient octagonal chassis profile
- Copper sleeved pole reduces inductive rise for improved HF performance
- "M-roll" surround provides progressive excursion control, generating a smooth frequency response
- Intelligent heat management in both chassis and magnet assembly design offers reduced thermal compression

Specifiche Generali
Nominal diameter: 203mm/8in
Power rating(1): 200Wrms
Nominal impedance: 8ohm
Sensitivity(2): 94.5dB

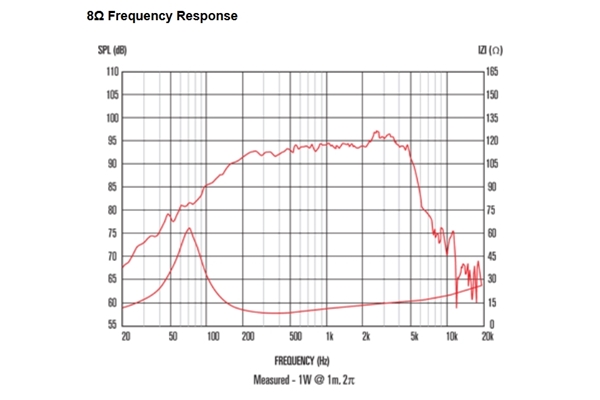

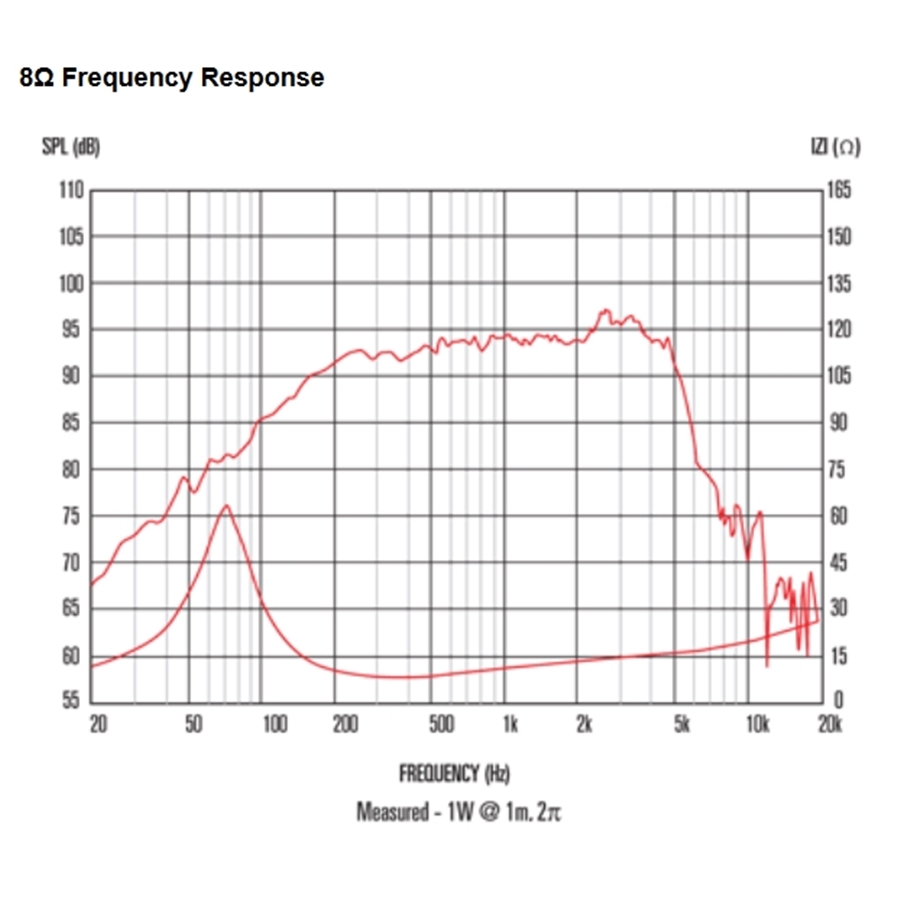

Frequency range: 70-5000Hz
Voice coil diameter: 50mm/2in
Chassis type: Cast aluminium
Magnet type: Neodymium
Coil material: Flat copper
Former material: Glass fibre
Cone material: Kevlar loaded paper with weather-resistant coating
Surround material: Cloth-sealed
Suspension: Single
Xmax(3): 4mm/0.16in
Gap depth: 10mm/0.39in
Voice coil winding width: 18mm/0.67in

Parametri di Thiele-Small
D: 0.17m/6.69in
Fs: 64.3Hz
Mms: 32.21g/1.14oz
Qms: 2.063
Qes: 0.219
Mmd: 30.27g/1.07oz
Qts: 0.198
Re: 5.83ohm
Vas: 13.87lt/0.49ft3
BI: 18.56Tm
Cms: 0.19mm/N
Rms: 6.3kg/s
Le (at 1kHz): 0.51mH

Informazioni di Montaggio
Overall diameter: 225mm/8.8in
Overall depth: 100mm/4.16in
Cut-out diameter: 187mm/7.4in
Mounting slot dimensions: 5mm/0.26in
Number of mounting slots: 8
Mounting slot PCD range: 210/8.3
Unit weight: 2.8kg/6.16lb

Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
(4)Small signal parameters measured after unit subjected to pre-conditioning signal.
